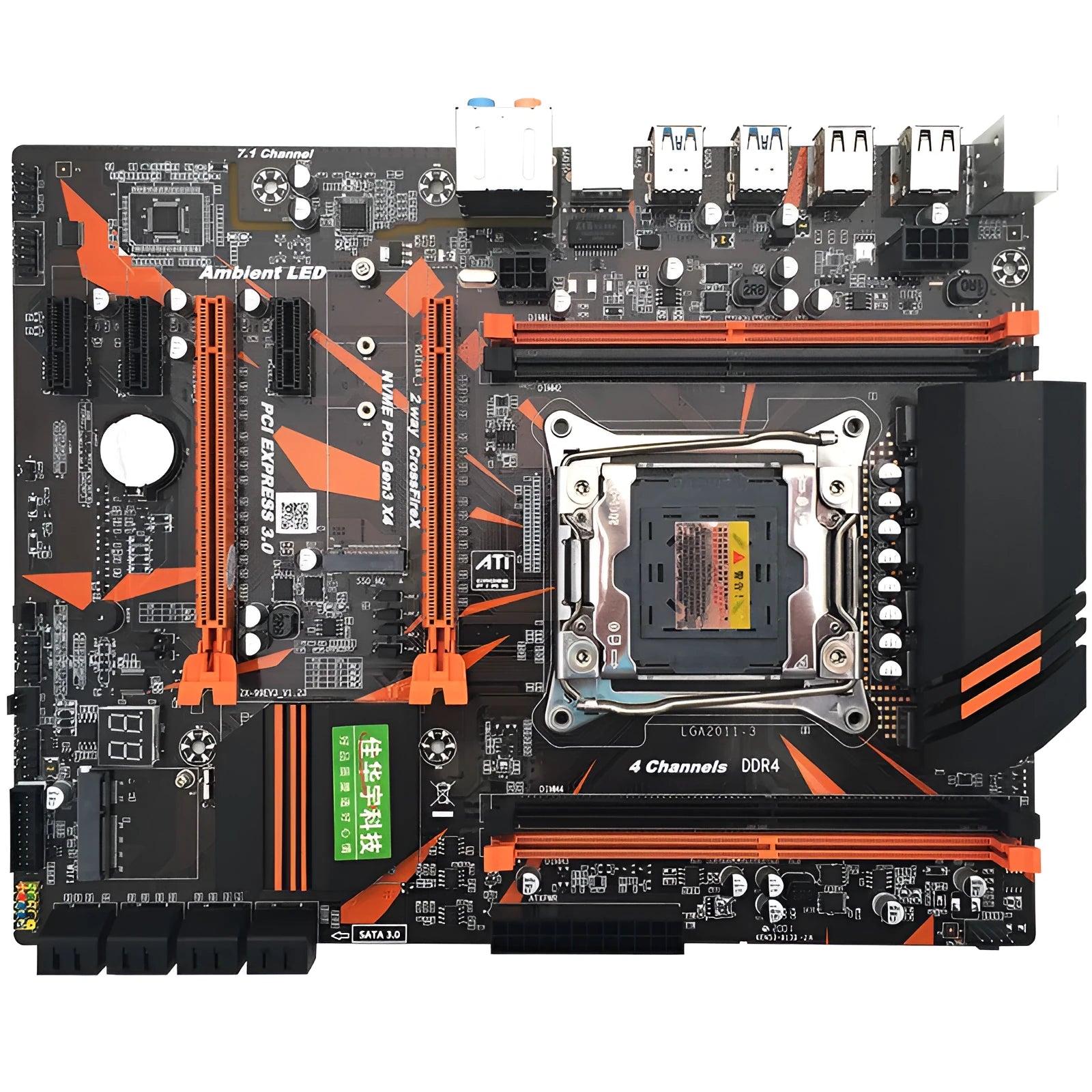

X99 ATX Motherboard for LGA2011-3 CPUs with Quad-Channel DDR4 and Dual PCI-E x16 Slots

This X99 series motherboard provides a robust foundation for high-performance desktop computing, built around Intel's X99 chipset and the LGA2011-3 processor socket. It is engineered to support both the enthusiast-grade Intel Core i7 series and the professional Xeon E5 v3 series CPUs, including models like the 5820K and 5960K, catering to demanding workloads in gaming, content creation, and computational tasks. The platform delivers substantial memory bandwidth through its four DDR4 DIMM slots, which accept standard desktop or registered ECC memory modules, though an important compatibility note restricts i7 processors from operating with server memory concurrently. With a comprehensive set of expansion slots, high-speed storage options, and integrated diagnostics, this board balances extensive connectivity with practical troubleshooting features for system builders.

Features and Construction

The motherboard's construction centres on the Intel X99 chipset, which manages data flow between the CPU, memory, and peripherals. It incorporates an integrated 7.1 channel audio codec for multi-channel sound output and an RTL8111H controller for Gigabit Ethernet connectivity, reducing the need for additional expansion cards. The PCB features a black solder mask over an FR4 fibreglass base, a common choice for durability and electrical insulation, with component placement optimised for standard ATX chassis compatibility. A digital fault diagnosis display and an audible buzzer are built onto the board, providing clear POST code feedback during system startup, while eight multi-colour LEDs illuminate the audio section for visual customisation.

Material and Build

The board utilises a standard FR4 fibreglass laminate, a flame-retardant substrate that forms the foundation of the PCB, with a black solder mask applied over the copper traces. This construction provides the necessary electrical insulation and mechanical strength for component mounting. Integrated chipsets include the Intel X99 series chipset for platform control, a dedicated audio chip delivering 7.1 channel surround sound capabilities, and an RTL8111H network controller enabling Gigabit LAN speeds. These integrated solutions reduce reliance on add-in cards, saving expansion slots for other purposes. The physical build includes reinforced CPU and PCI-E slots to withstand the weight of large coolers and graphics cards, though exact reinforcement methods are not detailed in the source material.

Size and Practical Fit

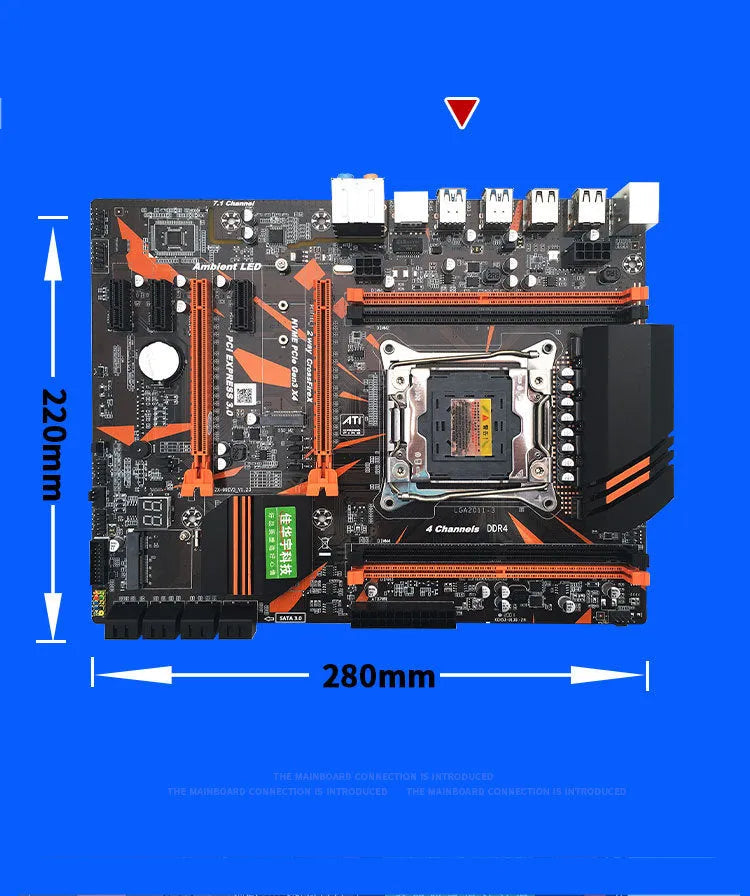

Designed to the ATX form factor standard, this motherboard fits into compatible ATX mid-tower and full-tower computer cases, aligning with standard mounting hole positions and rear I/O shield cutouts. Its layout positions the LGA2011-3 CPU socket centrally, surrounded by the four DDR4 DIMM slots arranged in a dual-channel per side configuration to optimise signal integrity for quad-channel memory operation. Expansion slots comprise two PCI-E x16 slots operating at full bandwidth, suitable for dual graphics card setups, and three PCI-E x1 slots for additional cards like sound, capture, or network adapters. Storage connectivity is positioned along the board's edge, with eight SATA 3.0 ports and one M.2 socket supporting PCIe NVMe drives for ultra-fast storage access, accommodating both traditional and modern storage devices.

Uses and Placement

This motherboard suits users building high-performance desktop systems for gaming, video editing, 3D rendering, and other compute-intensive applications where processor and memory performance are critical. Its support for both consumer Core i7 and workstation Xeon E5 v3 CPUs allows flexibility in balancing cost against core count and features. The quad-channel memory architecture significantly increases bandwidth over dual-channel setups, benefiting applications that stream large datasets, such as scientific simulations, high-resolution video editing, and virtual machines. The dual PCI-E x16 slots enable multi-GPU configurations for enhanced gaming performance or GPU-accelerated computing, while the abundance of SATA and M.2 ports supports extensive storage arrays for projects and media libraries.

Event or Professional Use

For professional environments like small rendering farms, engineering workstations, or video editing suites, the compatibility with Xeon E5 v3 processors offers support for higher core counts and ECC memory, which can correct single-bit errors critical for data integrity in long computations. The board's four memory slots accepting registered ECC modules allow configurations up to 128GB, suitable for large datasets in financial modelling, CAD simulations, or software development. The integrated Gigabit LAN and multiple USB 3.0 ports facilitate fast data transfer to network storage and peripherals. The digital POST display aids IT staff in quickly diagnosing hardware issues during system deployment or maintenance, minimising downtime in a production setting.

Everyday Home Use

In a home computing context, this motherboard supports powerful gaming rigs when paired with a Core i7 processor and high-speed DDR4 memory, leveraging the dual PCI-E x16 slots for SLI or CrossFire multi-GPU setups. The 7.1 channel audio outputs connect directly to surround sound speaker systems or high-impedance headphones for immersive entertainment. Eight SATA ports allow for multiple hard drives and SSDs, accommodating extensive game libraries, media collections, and family backups. The M.2 NVMe slot enables a boot drive with significantly faster load times than SATA SSDs, improving system responsiveness. The eight-colour audio LEDs add a customisable visual element to a windowed chassis, appealing to enthusiasts who value aesthetics alongside performance.

Benefits and Buying Value

Choosing this X99 motherboard provides a balance of expandability, performance, and diagnostic features at a platform level designed for Intel's high-end desktop CPUs of its generation. Its quad-channel memory support doubles the available bandwidth compared to mainstream dual-channel boards, directly benefiting memory-sensitive applications. The inclusion of both legacy PS/2 and modern USB 3.0 ports ensures compatibility with older and newer peripherals. The integrated fault diagnosis tools—the display and buzzer—offer clear troubleshooting feedback, which can save time and frustration during assembly or if issues arise later. While the warranty structure includes three years of coverage with differing terms, this provides long-term security for the investment.

Reuse and Low Maintenance

The motherboard's standard ATX form factor and widely supported interfaces mean it can be carried over to new cases or upgraded with different components over time, extending its useful life. The durable FR4 PCB and reinforced slots are designed to withstand multiple upgrade cycles, including CPU cooler swaps and graphics card changes. The integrated audio and network chips eliminate the need for separate cards, reducing potential points of failure and driver conflicts. Maintenance is straightforward: the BIOS can be updated via standard methods, and the clear POST codes simplify diagnosing any hardware changes. It's important to note that while the product may undergo continuous optimisation, the core specifications remain as described, ensuring consistent performance.

Why Choose This Product

This X99 motherboard stands out for its specific support of the LGA2011-3 socket and quad-channel DDR4 memory, a combination targeted at users needing maximum memory bandwidth for professional or enthusiast workloads. The dual PCI-E x16 slots running at full x16 speed provide genuine multi-GPU capability, unlike some boards that split bandwidth. The inclusion of an M.2 NVMe slot at full PCIe speed ensures compatibility with the fastest solid-state drives available. Practical features like the digital debug display and multi-colour audio LEDs add functional and aesthetic value without relying on vague claims of 'premium' quality. When compared generically to other motherboards, its differentiators are these concrete, measurable specifications: socket type, memory channels, slot configuration, and integrated diagnostics.
