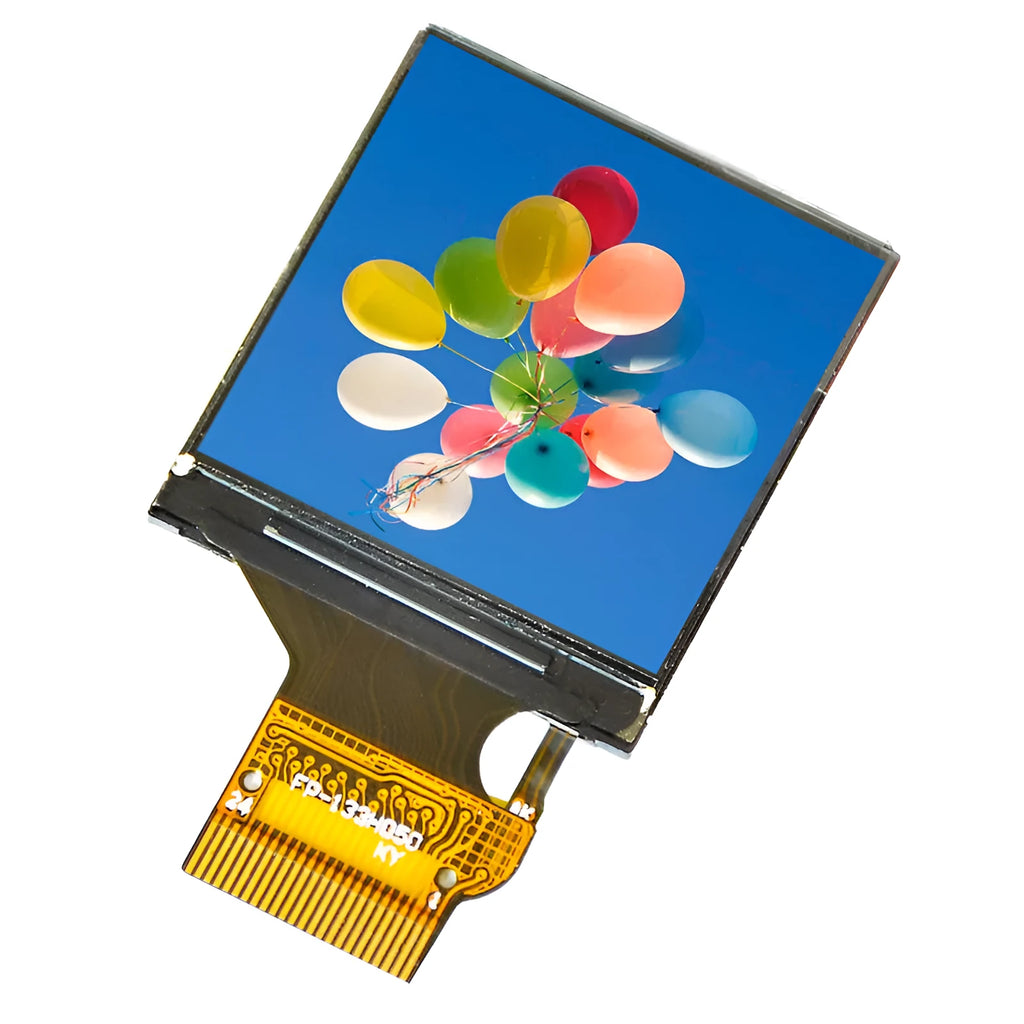

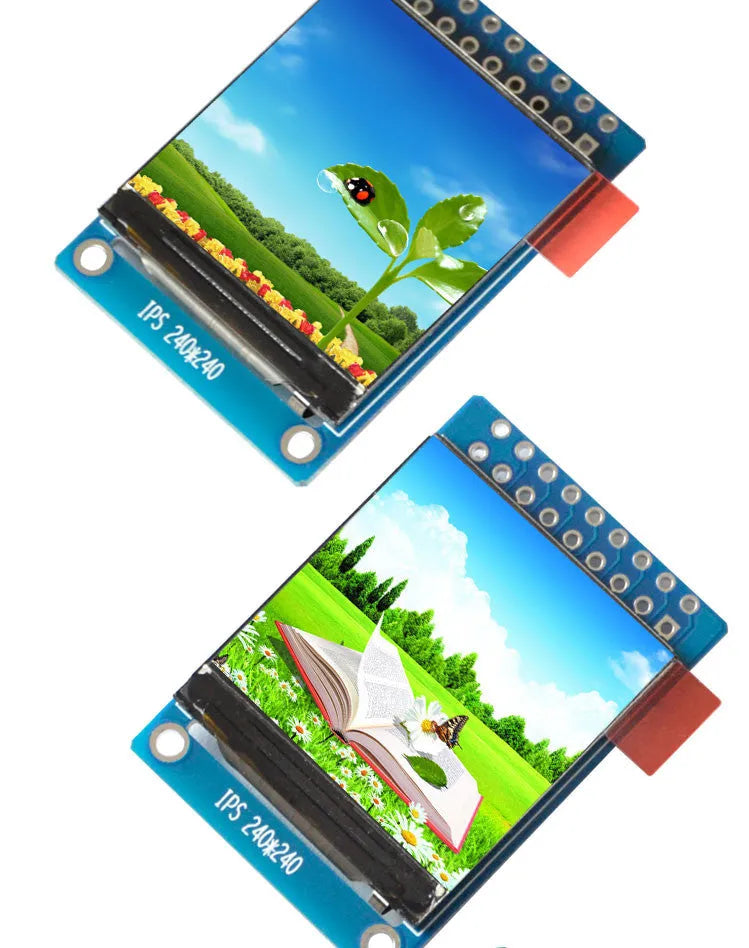

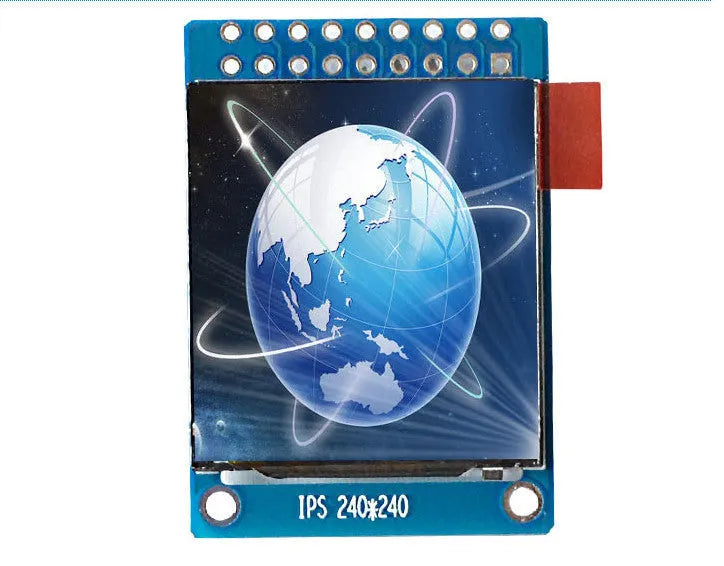

1.3 inch IPS LCD full colour display panel with 240x240 resolution and ST7789 controller

This 1.3 inch IPS LCD display panel provides a compact yet capable visual interface solution for electronic projects, embedded systems, and instrumentation applications. With its 240x240 pixel resolution square format and high-definition IPS technology, it delivers clear, colourful graphics across wide viewing angles. The display's modest 27.78x39.22 mm physical footprint makes it suitable for space-constrained applications while still providing a useful 23.4x23.4 mm viewing area. Whether you're building a custom control panel, a portable device with status indicators, or an interactive project requiring visual feedback, this panel offers the essential display functionality with flexible integration options through its dual interface support.

Features and Construction

The 1.3 inch display combines IPS screen technology with practical physical dimensions for electronic project integration. Its construction focuses on delivering reliable visual performance within a compact form factor suitable for various microcontroller-based systems.

Material and Build

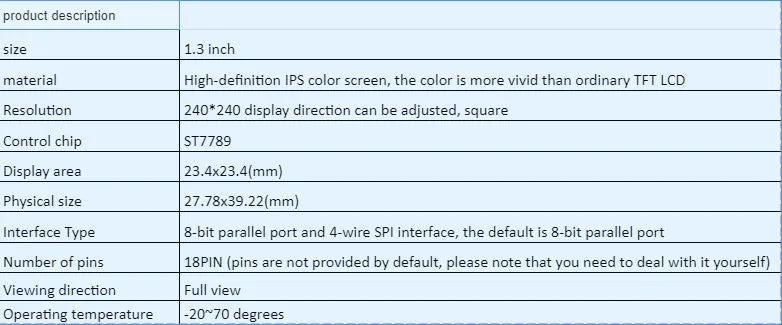

The display utilises high-definition IPS (In-Plane Switching) colour screen technology, which provides improved colour accuracy and wider viewing angles compared to standard TFT LCD displays. This construction means colours remain consistent even when viewed from different positions, making it suitable for applications where multiple viewing angles might occur. The ST7789 control chip manages the display processing, handling the colour rendering and interface communications efficiently. The physical build includes an 18-pin connector interface that allows for secure electrical connections, though users should note that the pins themselves are not included and must be sourced separately based on their specific project requirements.

Size and Practical Fit

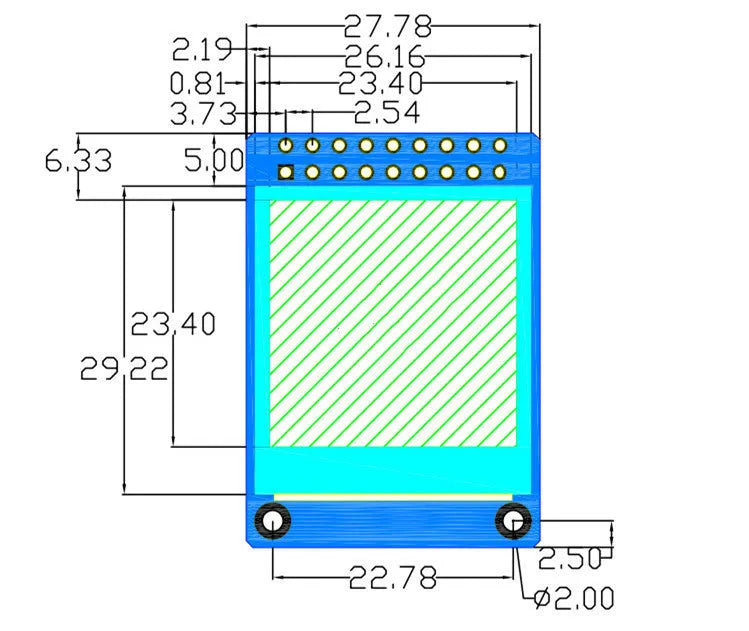

With a compact 1.3 inch diagonal measurement, this display offers a practical balance between screen size and physical footprint. The viewing area measures 23.4x23.4 mm, providing a square format well-suited for icons, status indicators, or simple graphical interfaces. The complete physical size extends to 27.78x39.22 mm, including the necessary border and connection area. This modest dimension allows installation in various project enclosures and cases where space is at a premium. The square format and adjustable display orientation further enhance installation flexibility, permitting both portrait and landscape mounting configurations depending on project needs.

Uses and Placement

This display panel finds application across multiple scenarios where visual feedback enhances functionality without requiring excessive space or complex integration. Its specifications support both hobbyist projects and more formal embedded system implementations.

Event or Professional Use

In professional or event settings, this display can serve as a status indicator for equipment, a compact control panel interface, or a portable device screen. The operating temperature range of -20 to 70 degrees Celsius allows deployment in environments with variable thermal conditions, from indoor controlled spaces to outdoor installations with temperature fluctuations. The dual interface options mean it can integrate with existing systems using either 8-bit parallel communication for higher bandwidth applications or 4-wire SPI for projects with limited GPIO availability. This flexibility makes it suitable for custom instrumentation, monitoring equipment, or control systems requiring reliable visual output.

Everyday Home Use

For home electronics projects, the display provides an accessible way to add visual feedback to microcontroller creations. Hobbyists can utilise it for custom weather stations, smart home controllers, retro gaming consoles, or interactive art installations. The vivid IPS colour reproduction enhances the visual appeal of personal projects, while the square format works well for displaying icons, simple animations, or text information. The 240x240 resolution offers sufficient detail for most hobby applications without overwhelming microcontroller resources. Since the display ships without pins, builders have the flexibility to choose connector types that best match their specific project requirements and soldering capabilities.

Benefits and Buying Value

Choosing this display panel brings several practical advantages centred on its technical specifications and integration flexibility. The combination of IPS technology, compact dimensions, and interface options creates a versatile display solution.

Reuse and Low Maintenance

The display's durable construction and standard interface protocols support reuse across multiple projects or iterations. Once integrated into one system, the knowledge gained about its communication requirements and physical mounting translates easily to future applications. The lack of moving parts and solid-state construction means minimal maintenance requirements beyond proper handling and connection. The operating temperature range further supports longevity by ensuring reliable performance across various environmental conditions without requiring specialised cooling or heating provisions in most applications.

Why Choose This Product

This display panel offers a balanced specification set for projects requiring clear visual output without excessive space consumption. The IPS technology provides better colour fidelity and viewing angles than basic TFT alternatives, while the 240x240 resolution delivers sufficient detail for most status display and simple interface applications. The dual interface support (8-bit parallel default with 4-wire SPI option) accommodates different microcontroller capabilities and project requirements. The square format and adjustable orientation add mounting flexibility, and the specific dimensions allow precise planning for enclosure design. For builders seeking a compact, colourful display with documented specifications and standard communication protocols, this panel provides a straightforward solution.
