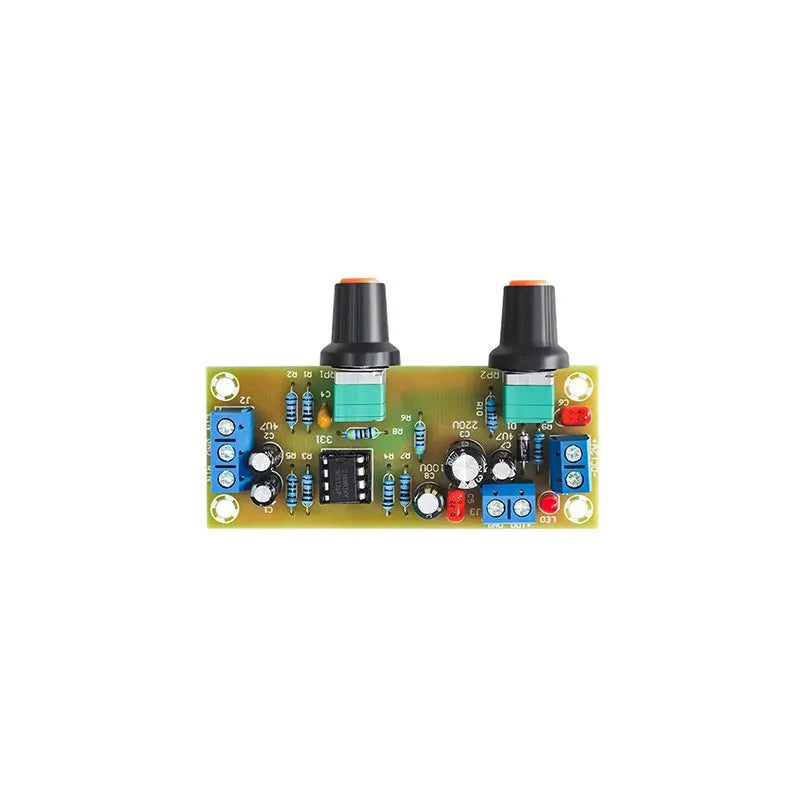

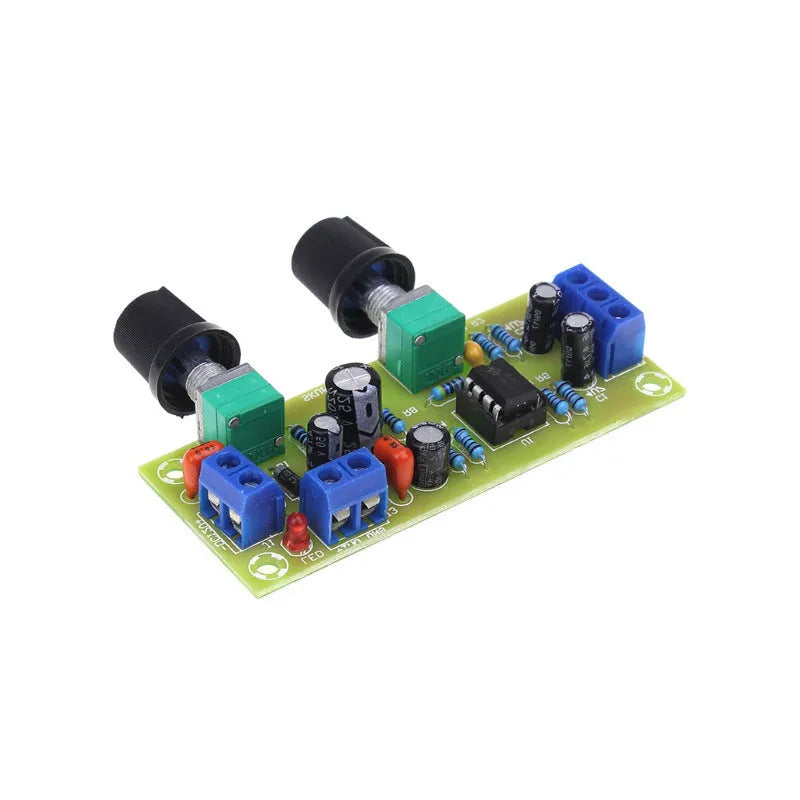

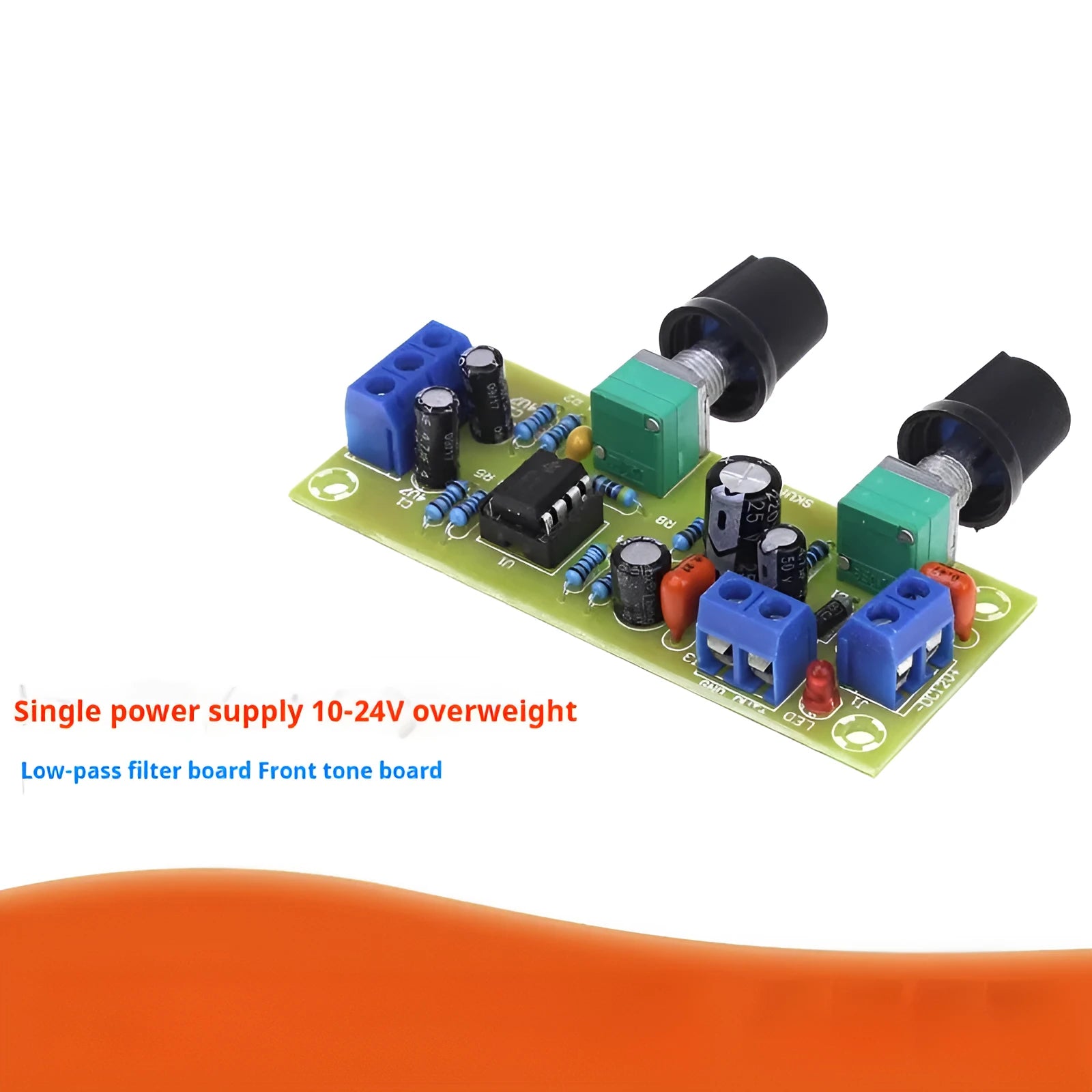

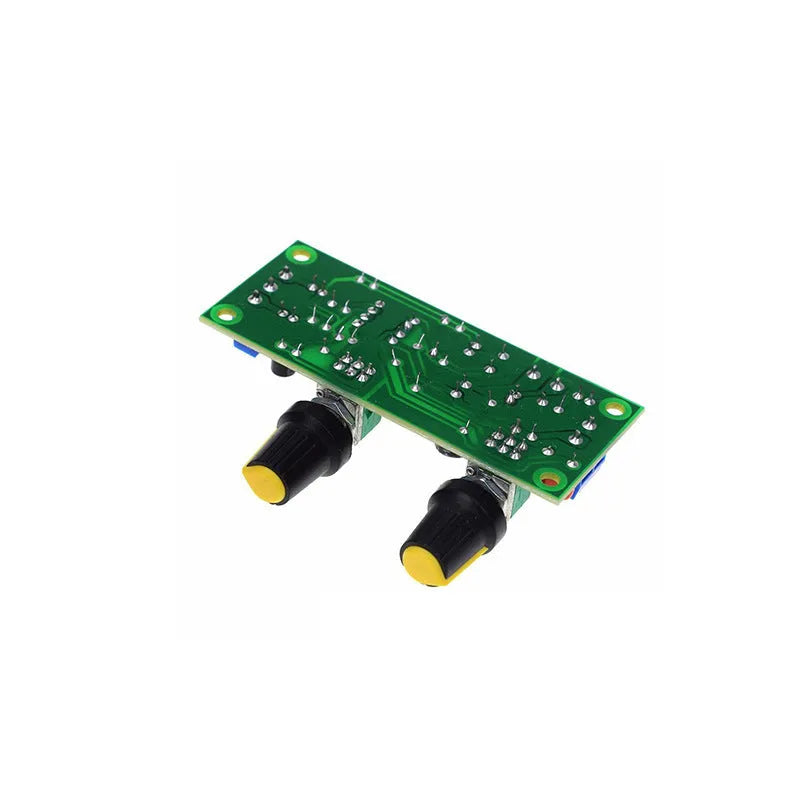

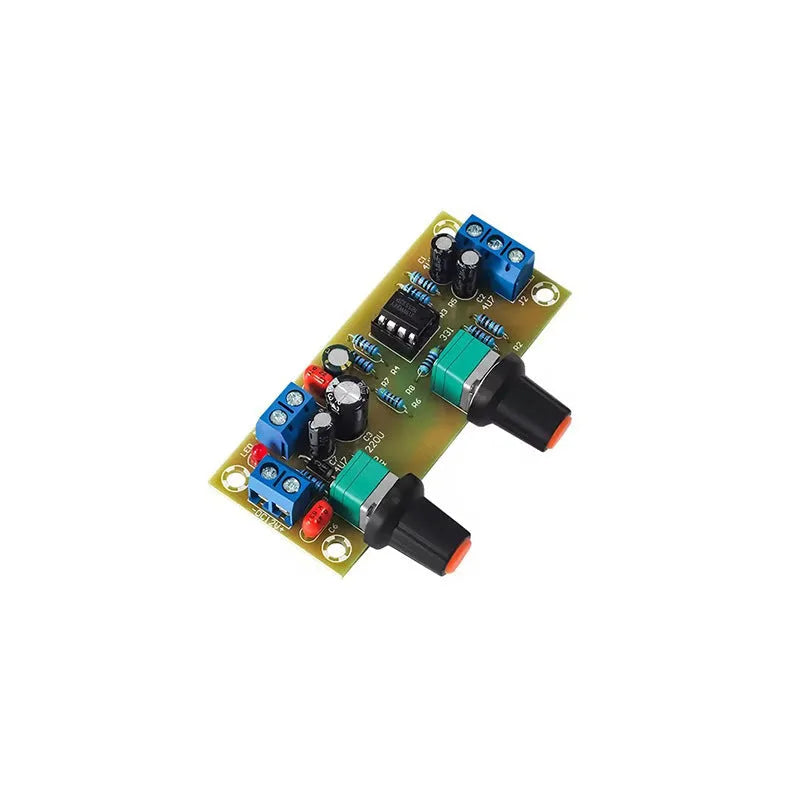

10-24V Single Power Supply Super Dynamic Bass Boost Front Stage Audio Board

This bass boost front stage board enhances low-frequency audio response for mono sound systems with flexible power requirements. Designed for applications where space efficiency and power supply versatility matter, the board processes frequencies between 22Hz and 300Hz to add dynamic bass to audio outputs. The single DC power supply accepts voltages from 10 to 24 volts, making it compatible with various automotive, portable, and home audio installations without requiring dual power sources. With its compact footprint and straightforward mono input/output configuration, this board provides bass enhancement for amplifiers, speaker systems, and audio processing chains where additional low-frequency response is desired.

Features and Construction

The board's design centres on practical audio enhancement with straightforward installation requirements. Built around a compact PCB that measures just 78 by 32 millimetres, the board incorporates all necessary components for bass boost processing while maintaining a minimal footprint that fits tight installation spaces.

Material and Build

The PCB uses FR-4 fiberglass material known for its electrical insulation properties and mechanical stability in electronic applications. This super hardness fiberglass board provides a durable foundation for the board's components while maintaining the 1.6 millimetre thickness specification. The FR-4 construction ensures reliable performance across the operating temperature ranges typical for audio electronics, with the material's inherent properties supporting consistent electrical characteristics throughout the board's frequency processing range.

Size and Practical Fit

With dimensions of 78 millimetres by 32 millimetres, the board occupies minimal space in audio system installations. The 30-gram weight makes it suitable for mounting in various orientations without requiring substantial support structures. Mounting holes positioned with 70 by 24 millimetre centre spacing and 3.2-millimetre diameters accommodate standard M3 hardware for secure attachment to enclosures, chassis, or mounting plates. The potentiometer shaft centres spaced 32.5 millimetres apart allow for control adjustment access through panel cutouts when installed behind front panels or control surfaces.

Uses and Placement

This bass boost board serves applications where enhanced low-frequency response benefits mono audio outputs. The board's electrical specifications and physical dimensions make it suitable for integration into existing audio systems or new installations where space-efficient processing is required.

Event or Professional Use

For public address systems, portable sound setups, or background music installations, the board adds bass enhancement to mono audio feeds where full-range speaker systems might lack low-frequency response. The wide 10-24V power supply range accommodates various power sources commonly available in temporary installations, from 12V battery systems to 24V industrial power supplies. Event technicians can integrate the board into signal chains between mixers and amplifiers to boost bass frequencies specifically in the 22-300Hz range where speech intelligibility and music impact benefit from controlled enhancement.

Everyday Home Use

In home audio systems, the board enhances bass response for television sound systems, computer speakers, or mono music setups where the existing amplification lacks dedicated bass management. Home users can power the board from common 12V adapters or integrate it into existing 12V or 24V audio system power supplies. The mono input/output configuration simplifies connection to single-channel amplifiers or powered speakers, while the compact size allows installation inside speaker enclosures, amplifier chassis, or dedicated audio processing units without significant modification to existing equipment.

Benefits and Buying Value

The board offers practical bass enhancement with installation flexibility that suits various audio system requirements. Its design prioritises compatibility with common power supplies and straightforward integration into existing audio signal paths.

Reuse and Low Maintenance

The board's durable FR-4 fiberglass construction provides long-term reliability in typical audio environment conditions without specialised maintenance requirements. The through-hole component mounting and standard PCB construction allow for component replacement if necessary, though the board design focuses on reliable operation throughout its specified voltage and frequency ranges. With no moving parts and solid-state electronic design, the board maintains consistent performance across repeated power cycles and extended operational periods common in audio applications.

Why Choose This Product

This bass boost board provides specific frequency enhancement between 22Hz and 300Hz using a single power supply from 10 to 24 volts DC. The compact 78 x 32mm PCB with FR-4 fiberglass construction offers reliable performance in space-constrained installations. With mounting holes positioned for secure attachment and potentiometer access for adjustment control, the board integrates practically into various audio system configurations where mono bass enhancement adds value to the listening experience without complex installation requirements or dual power supply needs.
