Official IoT Development Board Graphical Programming Suite for micro:bit V3 with Colour Screen

This official graphical programming suite presents a ready-to-use development platform centred on the micro:bit V3. It is engineered to simplify the entry into physical computing and Internet of Things (IoT) projects by integrating essential hardware with a user-friendly graphical coding environment. The board’s core appeal lies in its combination of a vivid visual display, practical onboard sensors, and standardised expansion ports, allowing learners and makers to progress from basic coding exercises to more sophisticated interactive prototypes without needing separate components. Its construction brings together a dedicated power management system, a real-time clock, and audio input capabilities on a single PCB housed within a durable PC enclosure, creating a compact and functional unit for educational and hobbyist applications.

Features and Construction

The suite's design prioritises functionality for STEM education and prototyping. Each hardware component is selected to provide clear, tangible outcomes for coding experiments, from visual feedback on the screen to audio input and precise timing.

Material and Build

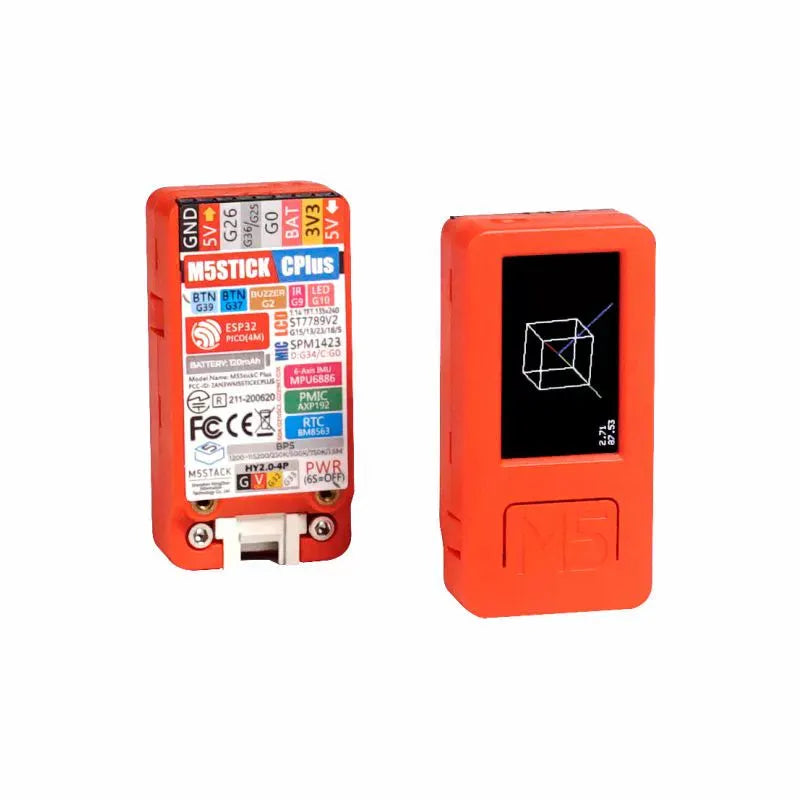

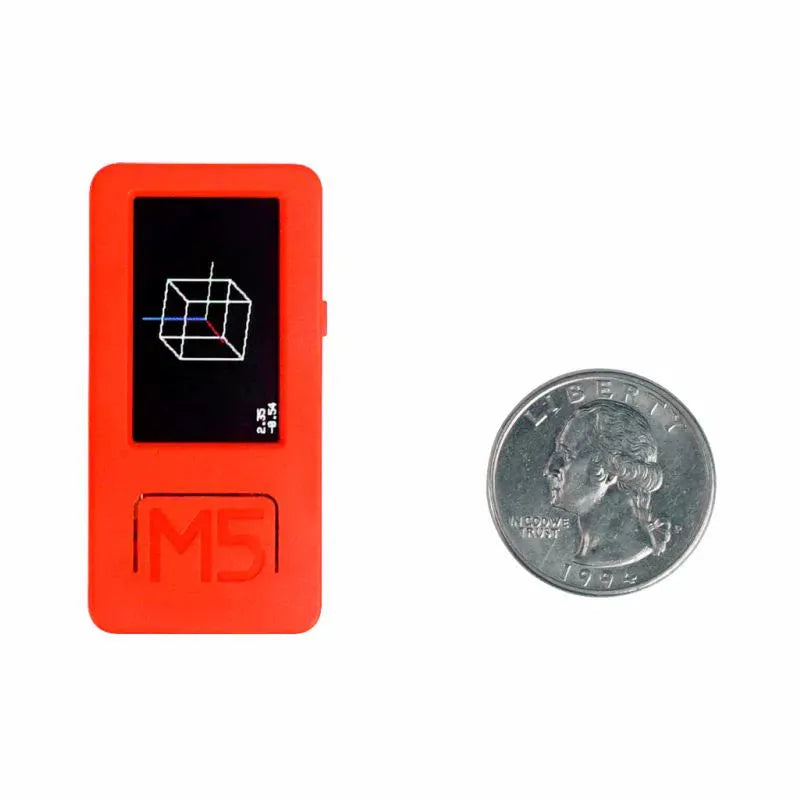

The board is encased in a PC (Polycarbonate) material, offering a robust and lightweight frame that protects the internal electronics. This housing supports the integrated 1.14-inch TFT colour LCD screen, which uses an ST7789v2 driver chip to deliver a resolution of 135 by 240 pixels. The main processing is handled by the micro:bit V3 module, which is complemented by specialised support chips: the AXP192 manages power distribution, the BM8563 provides real-time clock functionality for time-based projects, and the SPM1423 serves as a high-quality onboard microphone for sound detection and audio applications.

Size and Practical Fit

While exact physical dimensions are not detailed in the source specifications, the board's layout incorporates standard interfaces for easy integration into projects. The primary USB Type-C port supplies 5V power at 500mA and serves as the data connection for programming. A key feature for expansion is the multi-function GROVE port, which consolidates I2C, digital I/O, and UART protocols into a single connector, enabling plug-and-play attachment of a wide array of sensors and actuators without complex wiring. Two tactile, user-customisable buttons and a single red status LED provide direct physical input and simple output for interactive programs.

Uses and Placement

This development suite is tailored for environments where hands-on technology education and rapid prototyping are key. Its integrated components remove the initial hurdle of sourcing and connecting separate modules, allowing immediate focus on programming logic and project design.

Event or Professional Use

In workshop or classroom settings, this all-in-one board is an efficient tool for teaching core concepts of IoT, sensor data acquisition, and user interface design. The colour screen can display sensor readings, graphics, or simple games, while the real-time clock enables projects like data loggers or timed events. Its professional utility extends to quick proof-of-concept builds for product designers or engineers needing to test an interactive idea with audio input, a visual display, and physical buttons without building a custom PCB from scratch.

Everyday Home Use

For hobbyists and home learners, the suite supports a wide range of personal projects. It can form the brain of a custom weather station display, an interactive alarm clock, or a sound-activated art installation. The graphical programming approach lowers the barrier to entry, making it accessible for younger coders or those new to electronics, while the underlying micro:bit V3 hardware and GROVE expansion ensure the platform can grow with the user's skills into more advanced textual programming.

Benefits and Buying Value

The value of this product stems from its integration and official support, offering a coherent and tested platform that reduces project setup time and complexity.

Reuse and Low Maintenance

As a unified development board, it is designed for repeated use across multiple projects. The durable PC housing and standardised connectors like the Type-C and GROVE ports contribute to its longevity and ease of handling. The board does not require specialist maintenance; general care involves keeping it free from excessive dust and moisture. Its low-power operation via USB means it can be powered from common chargers, laptops, or battery banks, enhancing its portability and reuse in different locations.

Why Choose This Product

Choosing this official suite provides a verified and compatible hardware foundation for the micro:bit ecosystem. It distinguishes itself by bundling a colour display, microphone, and expansion port not always present on base boards, addressing a specific need for projects requiring richer user interaction. For educators, it simplifies lesson planning with a predictable, fully-functional kit. For makers, it offers a reliable core component that reduces the time spent debugging disparate parts, allowing more focus on creative coding and project execution.
