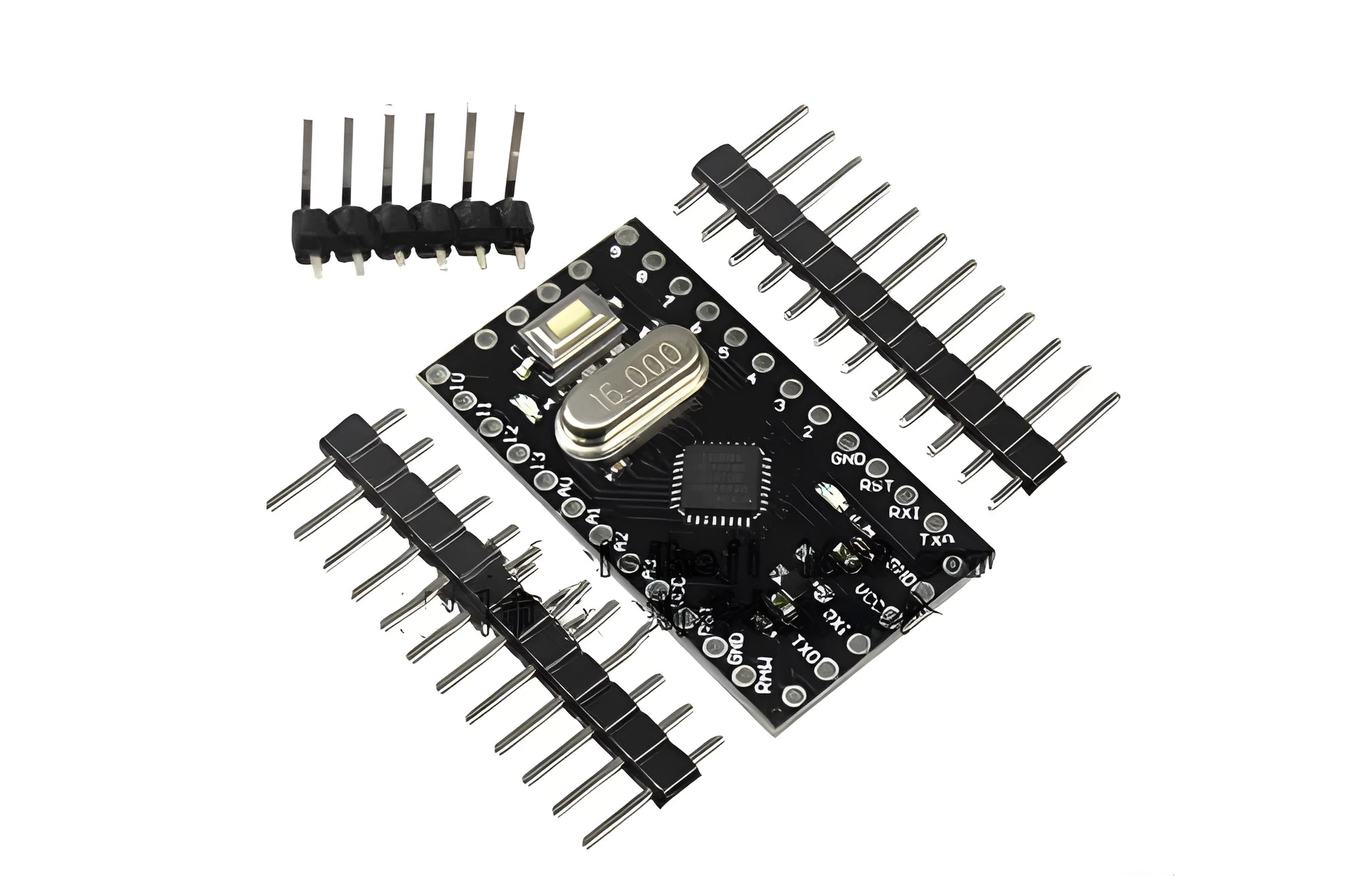

Mini Pro Professional Version ATMEGA328P Microcontroller Circuit Board for Electronic Projects

The Mini Pro professional version represents a compact yet fully-featured microcontroller circuit board designed for electronic building and programming applications. Measuring just 33.3mm by 18.0mm, this board incorporates an Atmel Atmega328P-AU microcontroller operating at 16MHz clock frequency, providing substantial processing capability within minimal physical dimensions. With 14 configurable digital input/output pins and eight dedicated analog inputs, it offers flexibility for various electronics projects ranging from basic prototypes to more complex embedded systems. The inclusion of mounting hole pin headers facilitates secure installation in project enclosures or testing setups, while dual power options accommodate both laboratory and portable applications.

Features and Construction

The Mini Pro board's technical specifications provide comprehensive connectivity for electronic development work. Its 33.3mm x 18.0mm footprint makes it suitable for space-constrained applications while still offering full microcontroller functionality.

Material and Build

Constructed around the Atmel Atmega328P-AU microcontroller, the board features a 16MHz resonator for precise timing operations and includes physical components such as a reset button for system control. Mounting hole pin headers provide mechanical stability when installed in projects, and the circuit design supports serial download functionality for programming. The board's components are arranged to maximise functionality within the compact dimensions while maintaining accessible connection points for all input/output ports.

Size and Practical Fit

At 33.3mm wide by 18.0mm high, the Mini Pro occupies minimal space in electronic projects while providing comprehensive microcontroller capabilities. This compact size makes it particularly suitable for embedded applications where physical dimensions are constrained, such as wearable electronics, compact sensor systems, or educational projects with size limitations. The small footprint does not compromise connectivity, with all 22 input/output pins accessible along the board's edges for straightforward wiring connections.

Uses and Placement

With its combination of digital and analog connectivity options, the Mini Pro microcontroller board serves multiple applications in electronics development and education.

Event or Professional Use

In professional or educational settings, the board supports electronics workshops, prototyping sessions, and embedded system development. Its support for external DC power from 3.3V to 12V makes it compatible with standard laboratory power supplies, while the 9V battery option enables portable demonstrations and field testing. The TTL level serial port transceiver (RX/TX) facilitates communication with computers or other devices for data logging, control applications, or system monitoring in various technical environments.

Everyday Home Use

For home electronics enthusiasts and educational purposes, the board provides an accessible platform for learning microcontroller programming and circuit design. The 14 digital I/O pins with six configurable PWM outputs allow for controlling LEDs, motors, or other actuators, while the eight analog inputs support sensor integration for environmental monitoring or interactive projects. The serial download capability enables programming from standard computers without specialised equipment, making it suitable for hobbyist applications and introductory electronics courses.

Benefits and Buying Value

The Mini Pro professional version offers specific advantages for electronic development through its balanced combination of features, connectivity, and physical design.

Reuse and Low Maintenance

The board's design supports multiple project cycles through reprogrammable functionality and robust construction. The Atmel Atmega328P-AU microcontroller can be reprogrammed numerous times via serial download, allowing the same hardware to serve different applications over time. The mounting hole pin headers provide secure physical attachment that withstands repeated project assembly and disassembly, while the standard voltage operation (5V) ensures compatibility with common electronic components without requiring voltage level shifting in most applications.

Why Choose This Product

This microcontroller board distinguishes itself through its comprehensive I/O capabilities within a particularly compact form factor. Unlike larger development boards that may include unnecessary features for basic projects, the Mini Pro focuses on essential microcontroller functions while maintaining full programmability and connectivity. The specific configuration of 14 digital ports (with six PWM-capable) and eight analog inputs addresses common project requirements without complexity, and the dual power options (3.3V-12V DC or 9V battery) provide flexibility for various development scenarios from bench testing to portable implementations.
