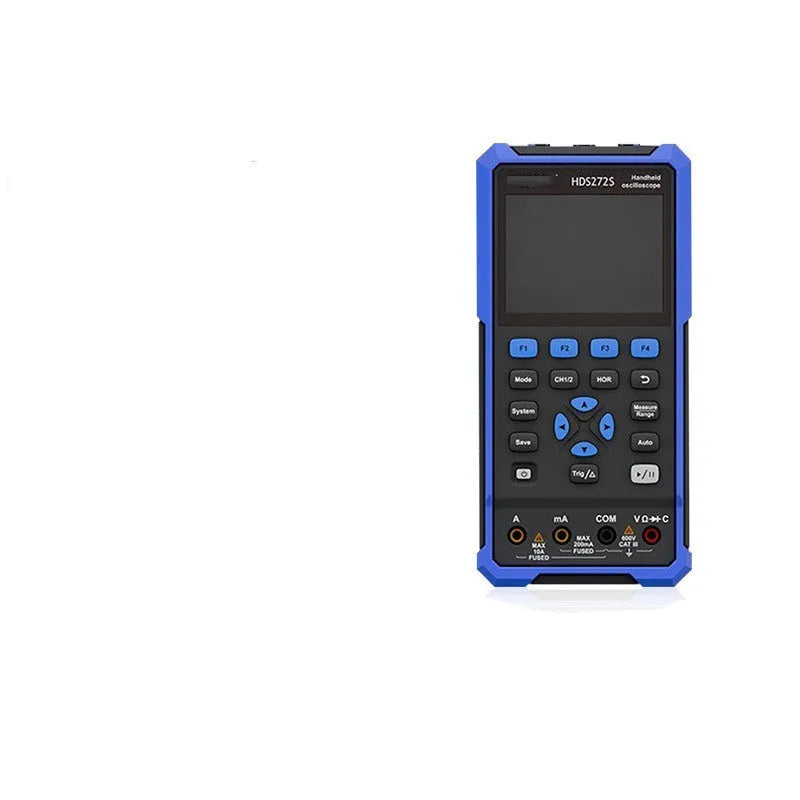

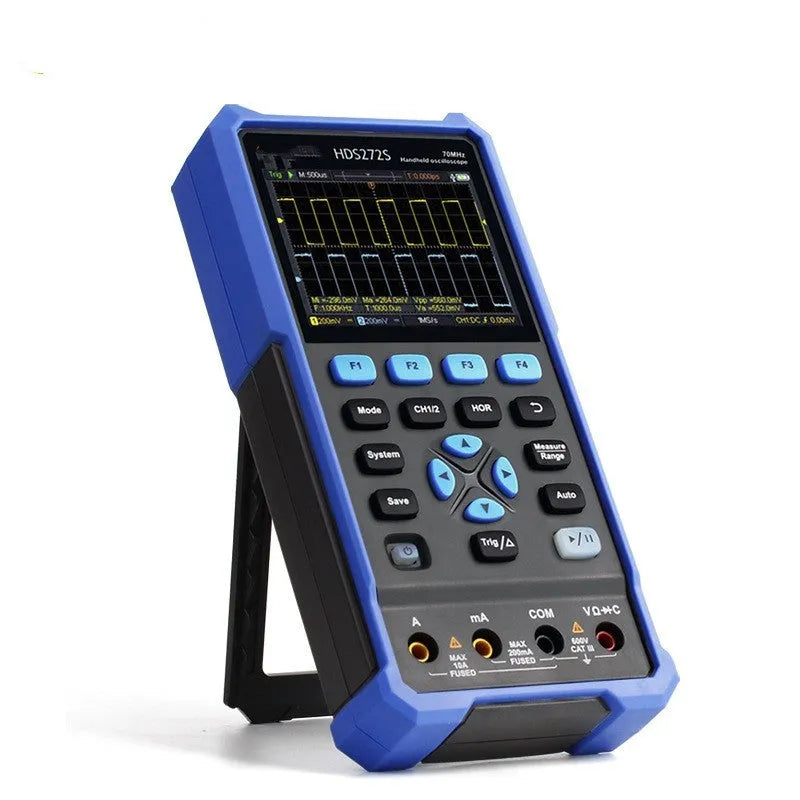

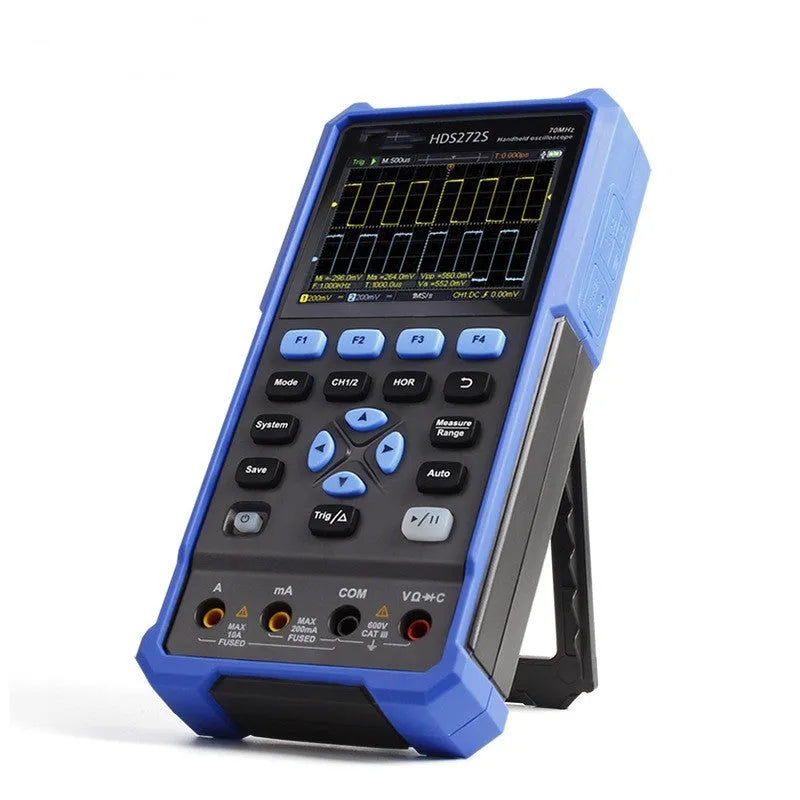

Handheld digital oscilloscope with 40-70MHz bandwidth for automotive and electronics diagnostics

This portable digital oscilloscope offers automotive technicians and electronics engineers a compact measurement solution for field diagnostics and workshop use. With its 40-70MHz bandwidth range, the device captures electrical waveforms across common automotive sensor frequencies and electronic circuit signals. The 250MSa/s sampling rate provides sufficient resolution for detailed waveform analysis, while the 10000wfms/s capture rate ensures rapid signal acquisition during dynamic testing scenarios. Measuring just 198mm in length, this handheld unit fits comfortably in toolboxes or can be carried in the included portable bag for on-site troubleshooting.

Features and Construction

The oscilloscope combines measurement capability with practical portability for technical professionals working across automotive repair, industrial maintenance, and electronics testing environments.

Material and Build

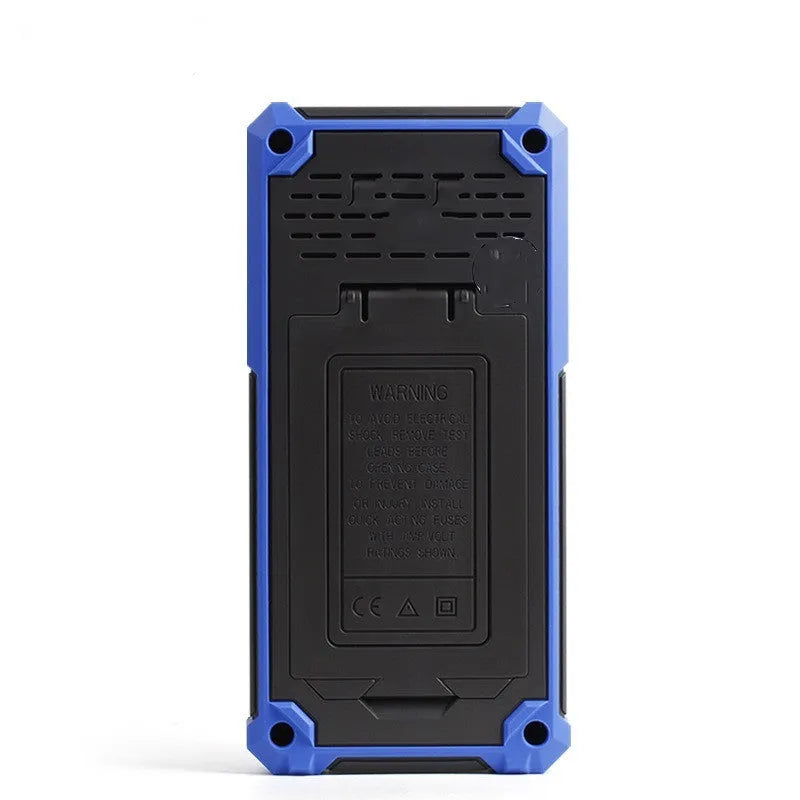

The main oscilloscope unit features a plastic housing designed for handheld use, with rubberised grip areas to improve handling during measurements. Metal probe tips provide reliable electrical contact with test points, while the BNC connectors ensure secure attachment of measurement accessories. The construction focuses on durability for workshop environments while maintaining the lightweight characteristics necessary for portable operation.

Size and Practical Fit

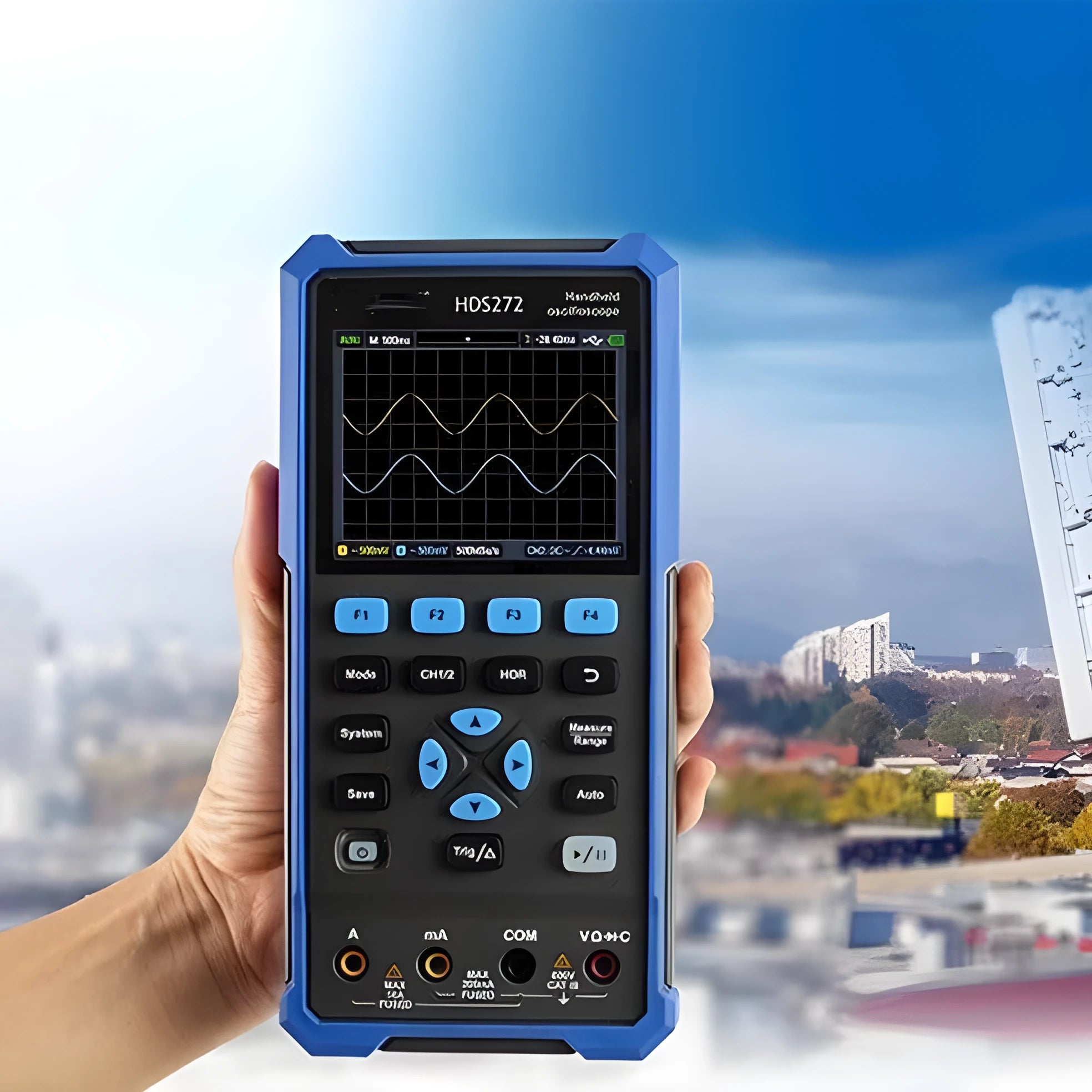

With dimensions of 198mm length × 38mm width × 96mm height, this oscilloscope maintains a compact form factor suitable for single-handed operation. The 198mm length allows comfortable grip while viewing the display, and the 96mm height provides sufficient space for connector access without excessive bulk. This size balance enables the unit to fit in standard tool cases alongside multimeters and other diagnostic equipment while remaining immediately accessible during testing procedures.

Uses and Placement

The included accessories and measurement specifications support specific professional applications while remaining adaptable for various electronic testing scenarios.

Event or Professional Use

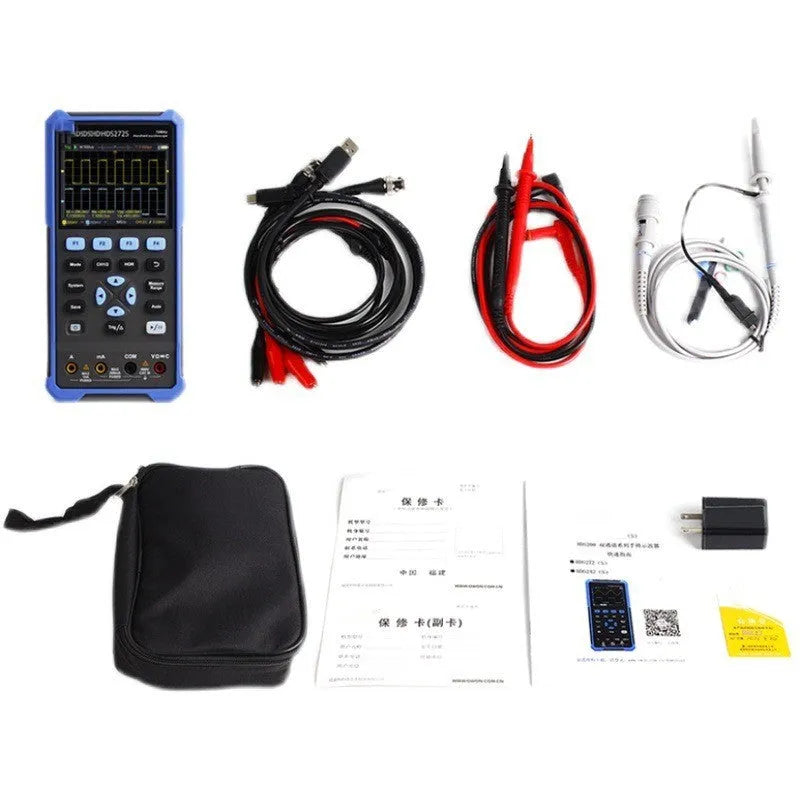

For automotive repair applications, the oscilloscope with its 40-70MHz bandwidth can analyse sensor signals including crankshaft position sensors, camshaft sensors, and ignition waveforms. The included crocodile clips and BNC adapter facilitate connection to automotive wiring harnesses, while the multimeter pen provides voltage measurement capability alongside waveform analysis. The portable bag protects the unit during transportation between workshop bays or service calls, maintaining readiness for diagnostic procedures.

Everyday Home Use

For electronics hobbyists and students, this oscilloscope offers introductory waveform analysis with sufficient bandwidth for audio circuits, microcontroller signals, and power supply testing. The USB cable enables connection to computers for potential data transfer, while the manual provides operational guidance for those new to oscilloscope measurements. The correction pen allows calibration of probe compensation to maintain measurement accuracy across different test scenarios.

Benefits and Buying Value

The complete measurement kit approach provides immediate usability while the handheld design offers flexibility across different testing environments.

Reuse and Low Maintenance

The included portable bag provides protective storage between uses, reducing the risk of damage to connectors and the display screen. The correction pen enables periodic probe calibration to maintain measurement accuracy over time, while the plastic housing resists scratches from workshop handling. The BNC adapter and crocodile clips offer reusable connection options across multiple testing scenarios without requiring additional purchases.

Why Choose This Product

This handheld oscilloscope combines specific measurement specifications with practical accessories for automotive and electronic testing. The 40-70MHz bandwidth addresses common diagnostic frequencies, while the 250MSa/s sampling rate provides adequate resolution for waveform details. Unlike bench-top models, the 198mm handheld design offers true portability, and the included probe pen, multimeter pen, and adapters create a complete measurement kit ready for immediate use without additional accessory purchases.
