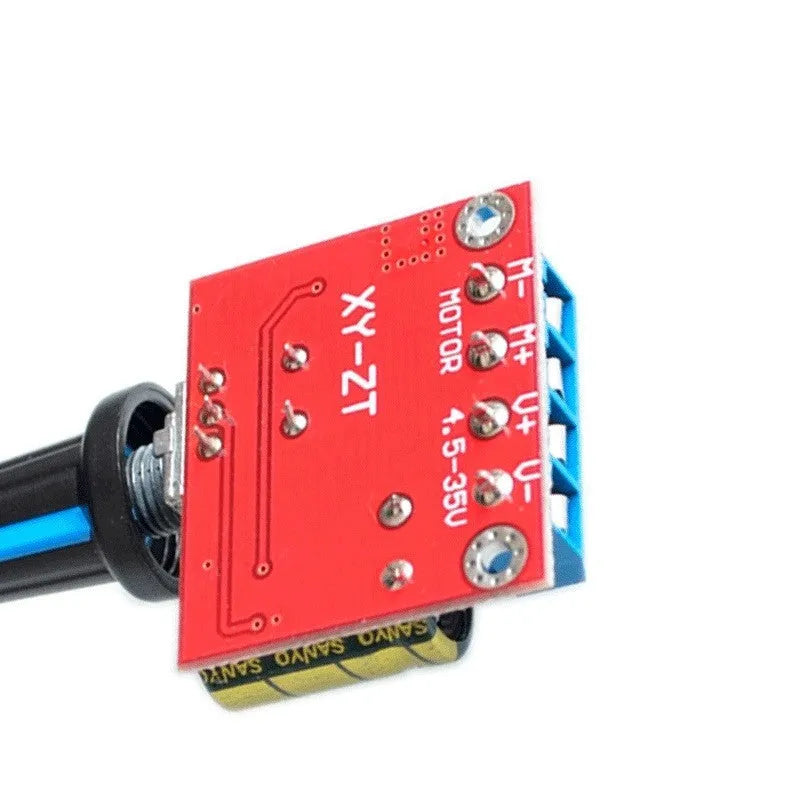

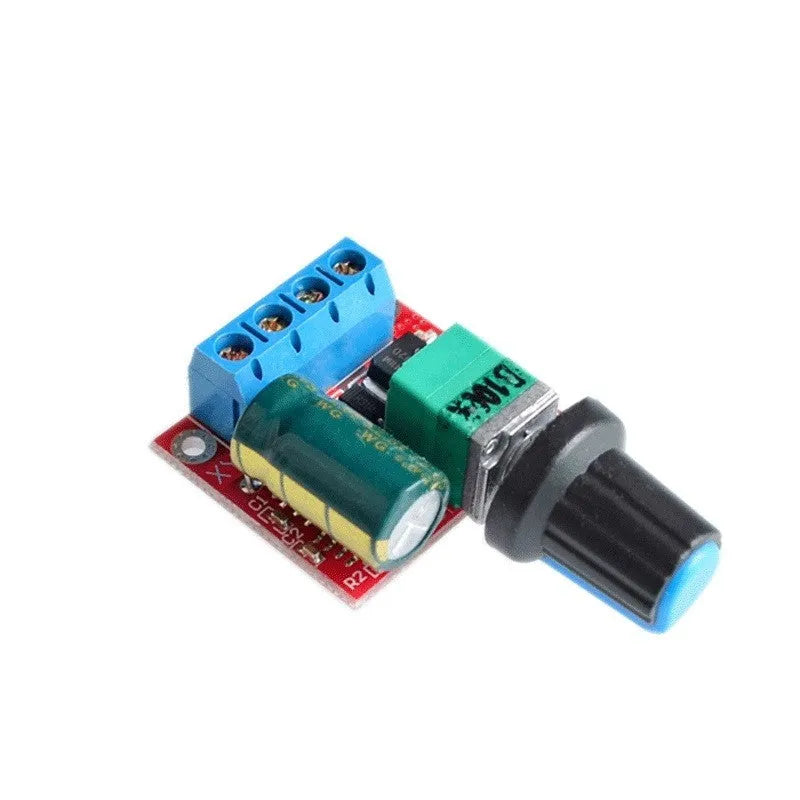

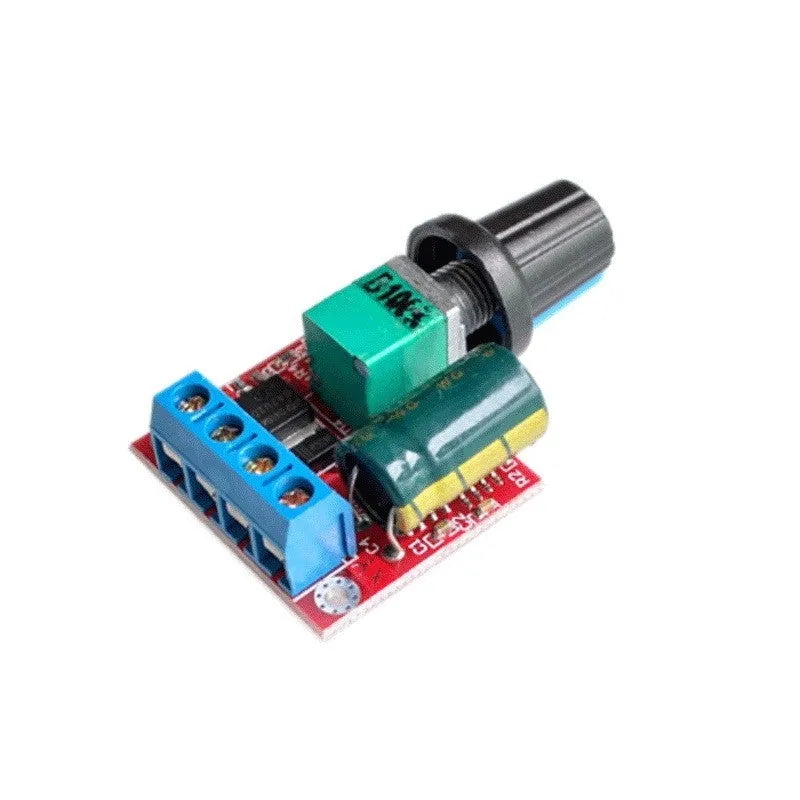

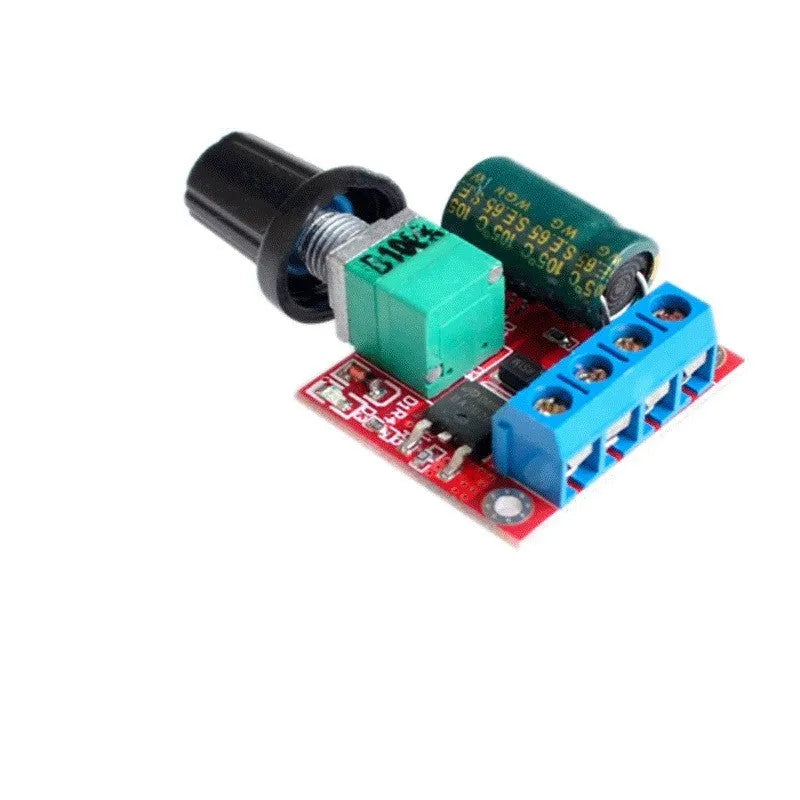

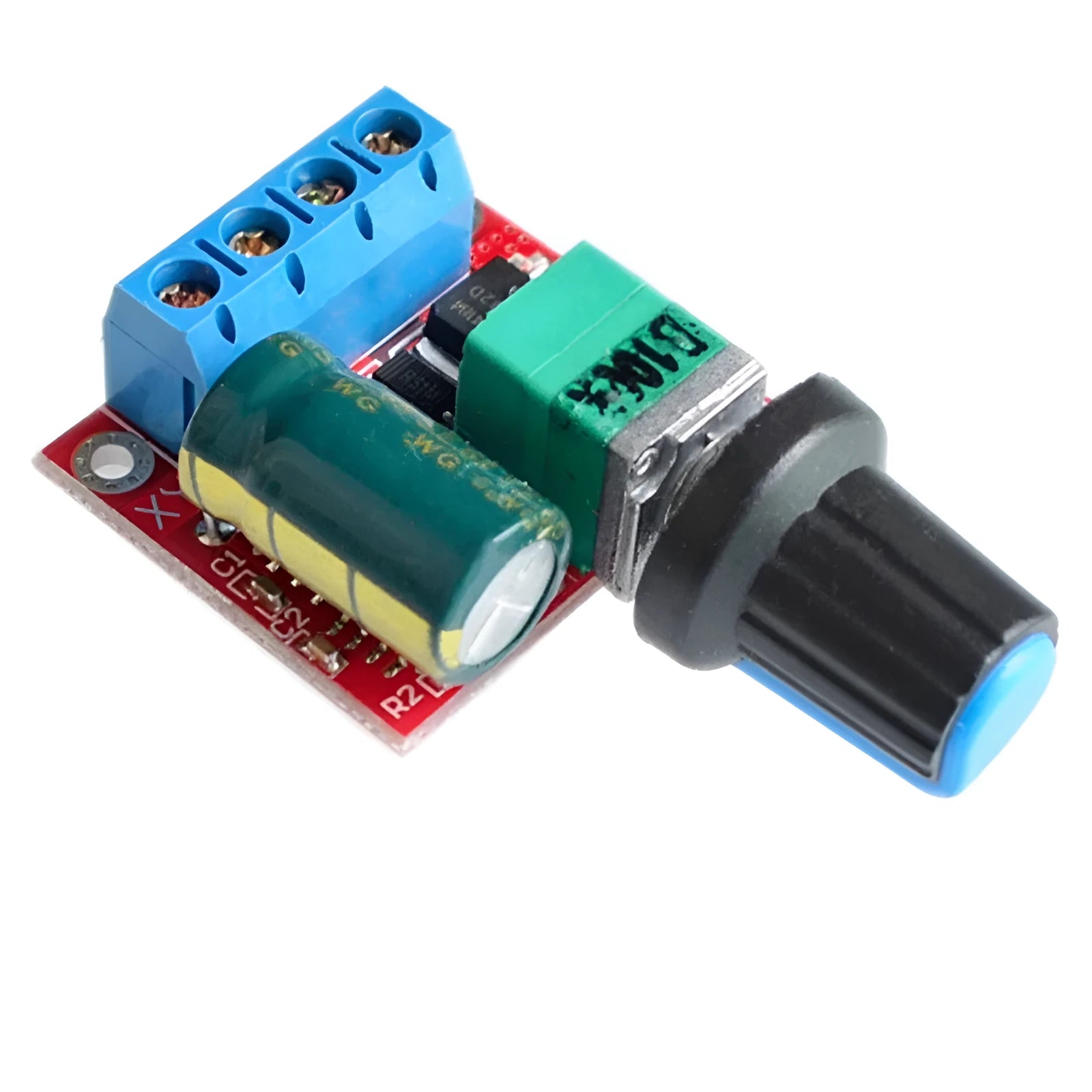

PWM DC motor governor for 4.5V-35V systems with 5A output current and 90W power rating

This PWM DC motor governor provides electronic speed control for DC motors operating within a 4.5V to 35V range, offering maximum output of 5A current and 90W power. The compact 30mm by 26mm unit features a straightforward potentiometer knob interface for adjusting the PWM duty cycle from 1% to 100%, directly controlling motor speed. Operating at a 20kHz PWM frequency ensures smoother motor performance with reduced electrical noise compared to lower frequency controllers. Designed exclusively for DC power applications, this governor requires careful attention to wiring polarity and must never be connected directly to AC mains voltage sources to prevent damage. With its practical size and clear speed adjustment mechanism, it serves as a reliable component for various motor control projects.

Features and Construction

The governor's electronic design centres around PWM signal generation and power regulation, packaged in a compact form factor suitable for integration into various projects. All specifications derive from its circuit design and component selection for handling DC motor loads.

Material and Build

The governor comprises standard electronic circuit board components arranged for PWM signal processing and power regulation. The construction includes a potentiometer knob mounted for manual adjustment, providing tactile control over the output duty cycle. Power input and output terminals accommodate standard wiring connections for integration with DC power supplies and motors. The physical build prioritises functionality within the stated 30mm by 26mm footprint, with components arranged to manage heat dissipation under the 5A maximum load conditions.

Size and Practical Fit

With dimensions of 30mm length, 26mm width, and 14mm height, the governor occupies minimal space in project enclosures or mounting areas. The compact size facilitates installation in constrained locations while maintaining accessibility to the adjustment knob. This dimensional specification excludes any additional handle or mounting hardware, focusing on the core unit's measurements. The form factor supports straightforward integration into various mechanical and electronic assemblies where space efficiency matters alongside reliable motor control functionality.

Uses and Placement

This governor suits applications requiring variable speed control for DC motors within its voltage and current specifications. From hobbyist projects to small-scale automation, it provides adjustable power delivery based on the potentiometer setting.

Event or Professional Use

In workshop or maker environments, this governor can regulate DC motor speed for tools, demonstration setups, or prototype machinery. The 5A output capacity handles motors for small conveyors, fans, pumps, or positioning systems requiring variable operation. Professionals might integrate it into test benches, educational demonstrations, or low-power automation where adjustable DC motor speed proves necessary. The 4.5V-35V range accommodates various power supply options, from battery packs to benchtop DC power sources commonly available in technical settings.

Everyday Home Use

For home workshop projects, this governor enables speed control for DC motors in custom ventilation systems, model railways, hobby robotics, or adjustable lighting setups. The potentiometer knob offers intuitive adjustment without requiring additional programming or complex interfaces. Hobbyists can use it to create variable-speed drills, saws, or other motorised tools from standard DC motors. When building custom cooling solutions or automated window openers, the governor provides the speed variability needed for optimal performance without overspending on specialised controllers.

Benefits and Buying Value

The governor offers practical speed control within its specified parameters, avoiding unnecessary complexity while delivering essential motor regulation functions. Its value stems from reliable operation across a useful voltage range.

Reuse and Low Maintenance

With no moving parts beyond the potentiometer knob, the governor requires minimal maintenance under normal operating conditions within its 5A maximum rating. The solid-state design promotes longevity when used with appropriate DC power sources and correct wiring polarity. The unit can be reused across different projects as motor requirements change, provided voltage and current limits remain observed. Careful wiring and avoidance of AC mains connection help maintain functionality over extended periods, making it a durable component in well-planned circuits.

Why Choose This Product

This governor presents a straightforward solution for DC motor speed control where 5A output and 90W power meet project requirements. The 20kHz operating frequency reduces audible motor whine and electrical interference compared to lower-frequency controllers. The wide 4.5V-35V input range offers flexibility with various DC power sources, from low-voltage battery packs to higher-voltage bench supplies. The compact dimensions ensure easy integration without demanding excessive enclosure space. For those needing basic, adjustable motor speed without complex programming interfaces, this potentiometer-controlled governor delivers practical functionality.
