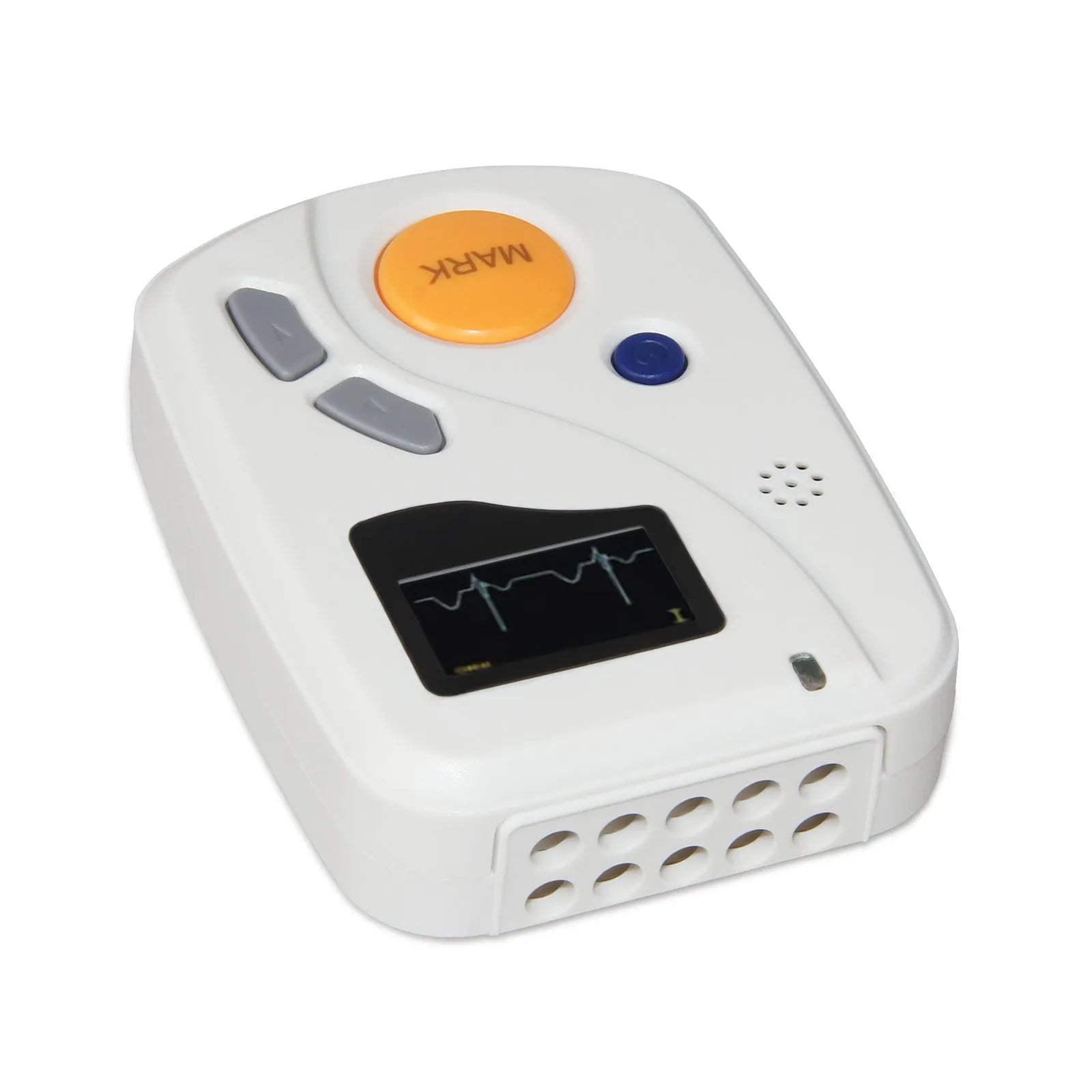

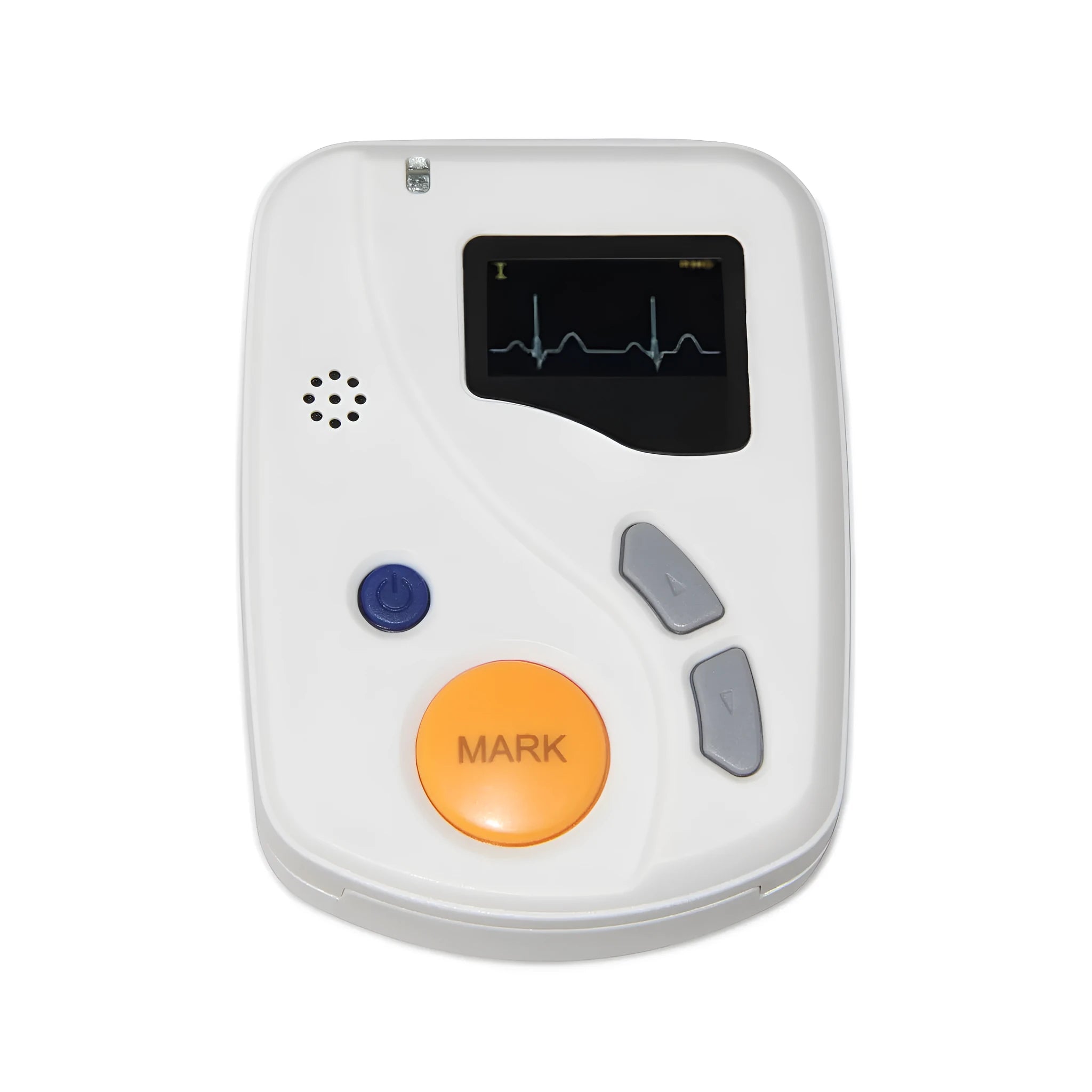

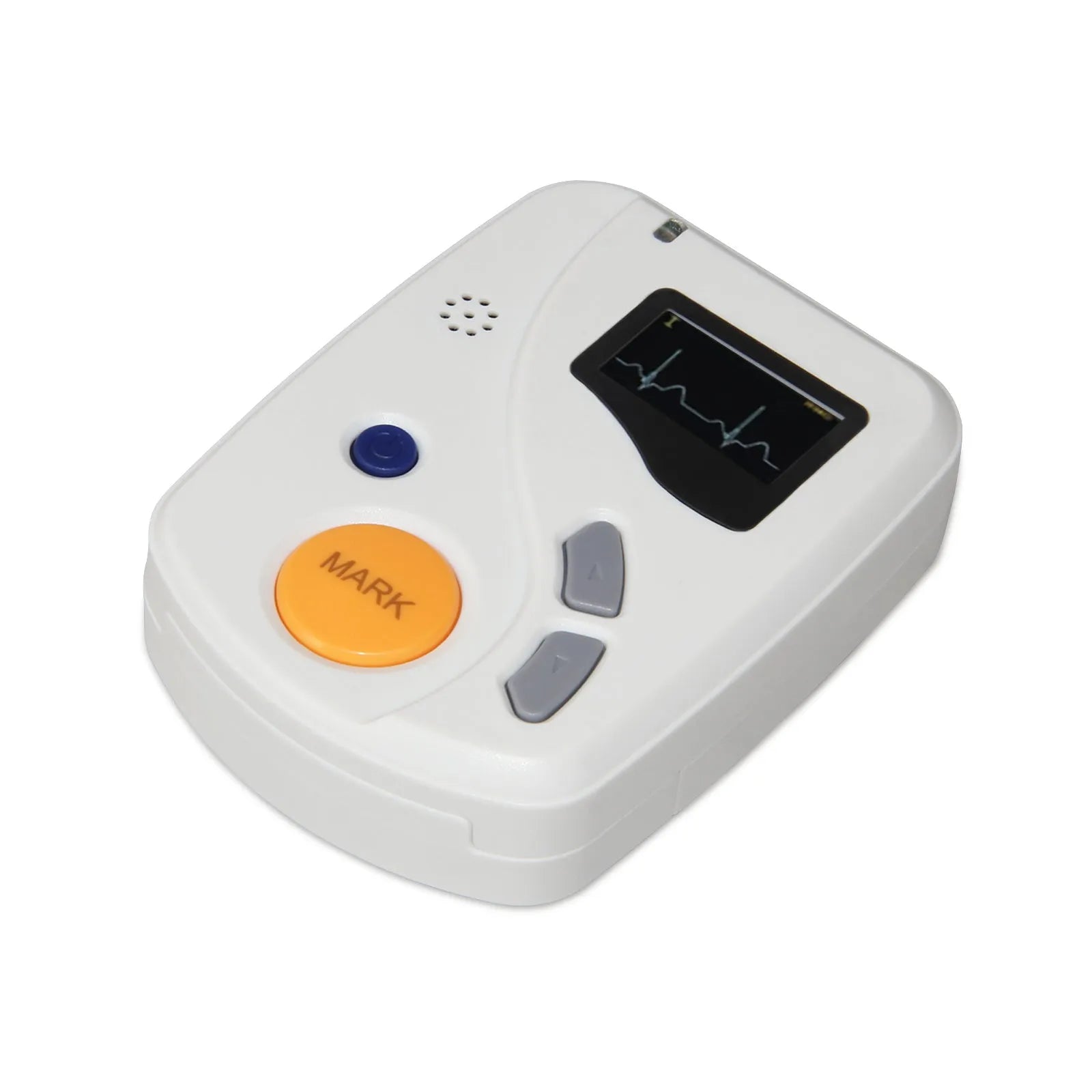

CONTEC TLC6000 24-Hour 12-Lead Holter Monitor with PC Analysis Software for Clinical ECG Monitoring

The TLC6000 Dynamic ECG system from CONTEC provides a reliable solution for continuous cardiac monitoring over a full 24-hour period. Using the international standard 12-lead system, it records ECG waveforms accurately and transfers them to a PC for detailed analysis. Designed for use in medical institutions and community healthcare settings, this monitor supports a wide range of diagnostic functions including arrhythmia detection, heart rate variability, and T-wave alternation analysis. Its lightweight, compact design makes it practical for both in-hospital and ambulatory use, while the included software enables flexible report generation and data review.

Features and Construction

The TLC6000 is built around a standard 12-lead configuration with sync analysis across all leads. It offers multiple analysis templates and user-defined modules to help distinguish pathological waveforms.

12-Lead Recording

Records continuous ECG waveform for 24 hours using the international standard 12-lead system. Sync analysis for all leads ensures accurate QRS waveform detection without distortion.

Analysis Templates

Includes more than 10 predefined templates covering atrial premature beats, ventricular premature beats, long intervals, atrial fibrillation, and other common patterns. User-defined modules allow customisation for specific clinical needs.

Heart Rate Variability

Offers analysis functions for 5-minute, 1-hour, and full 24-hour heart rate variability. This supports assessment of autonomic function and risk stratification.

Uses and Placement

Suitable for hospitals, clinics, and community health centres where continuous cardiac monitoring is required. The device supports both short-term and long-term diagnostic workflows.

Clinical Diagnostics

Physicians can use the device for detecting arrhythmias, conduction abnormalities, and ischaemic events over a 24-hour period. The flexible atrial fibrillation analysis with auto/manual modes improves diagnostic accuracy.

Risk Assessment

Includes HRT analysis function to help predict death risk in patients with myocardial infarction. T-Wave alternation analysis provides an important index for predicting malignant arrhythmia and sudden cardiac death.

Research and Reporting

Additional analysis modules include QTD (QT dispersion), VCG (vector cardiogram), VLP (ventricular late potential), and TVCG (time vector cardiogram). One-key print function enables fast report generation.

Benefits and Buying Value

The TLC6000 combines comprehensive analysis capabilities with ease of use, making it a practical tool for cardiac diagnostics. Its portable design and low power requirements add to its everyday value.

Portable and Low Maintenance

Runs on a single AAA alkaline battery, reducing operating costs and simplifying replacement. The recorder weighs only 61.5g without batteries and measures 81mm by 60mm by 22mm, making it comfortable for patients to wear.

Why Choose This Product

Backed by CE and FDA certification, the TLC6000 offers a full suite of analysis functions in a compact device. The included PC software provides powerful tools for detailed ECG interpretation without requiring additional proprietary hardware.
