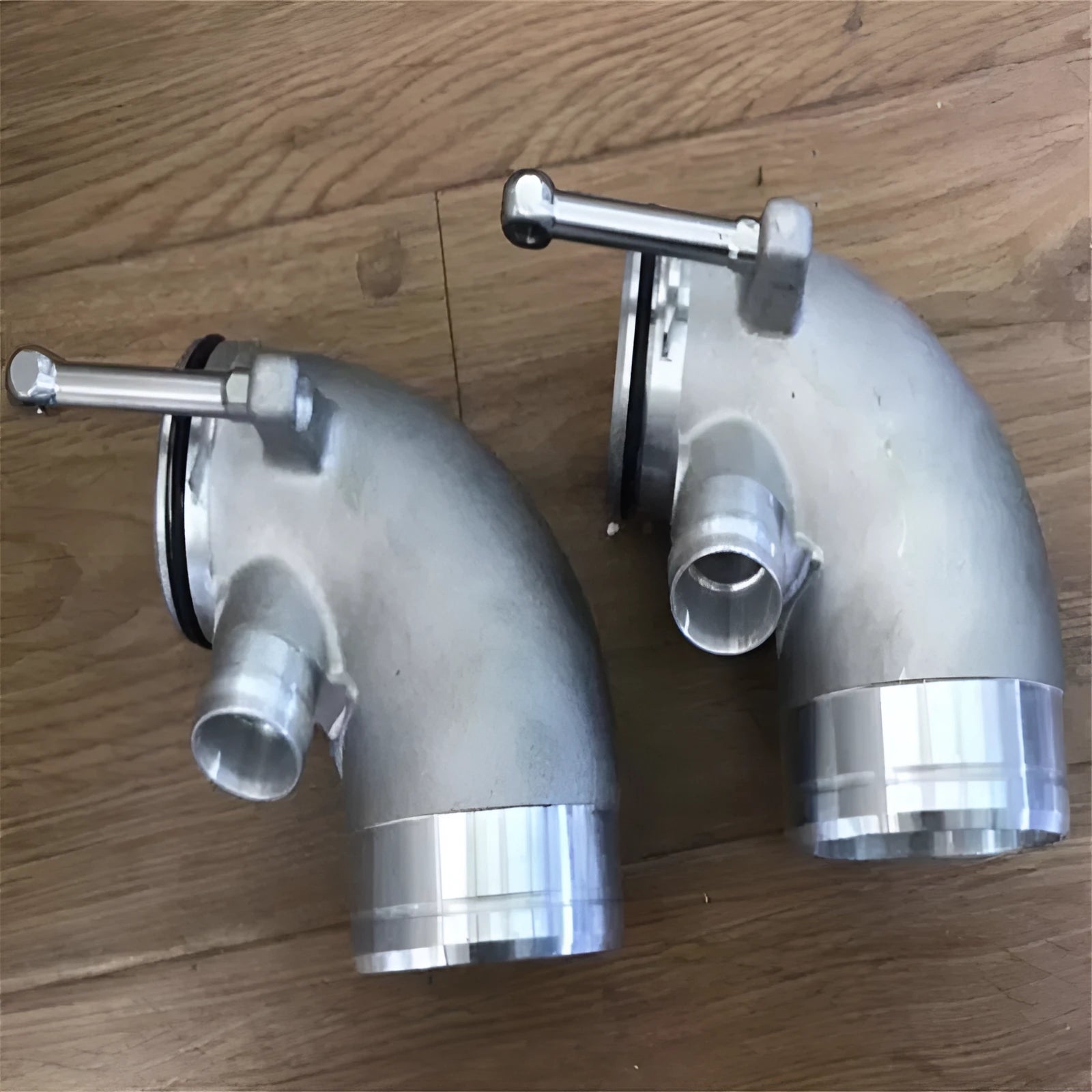

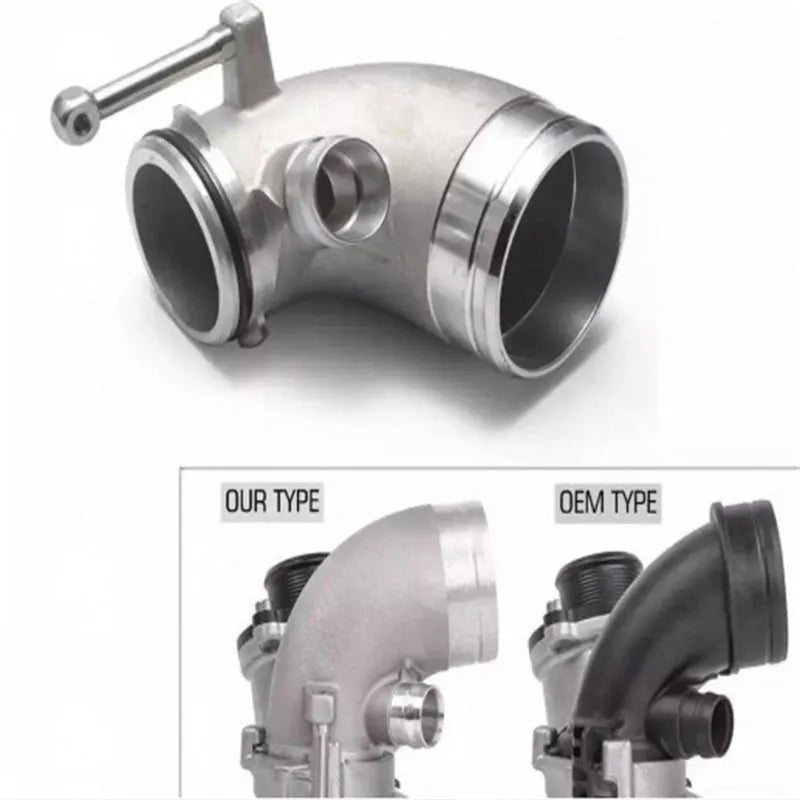

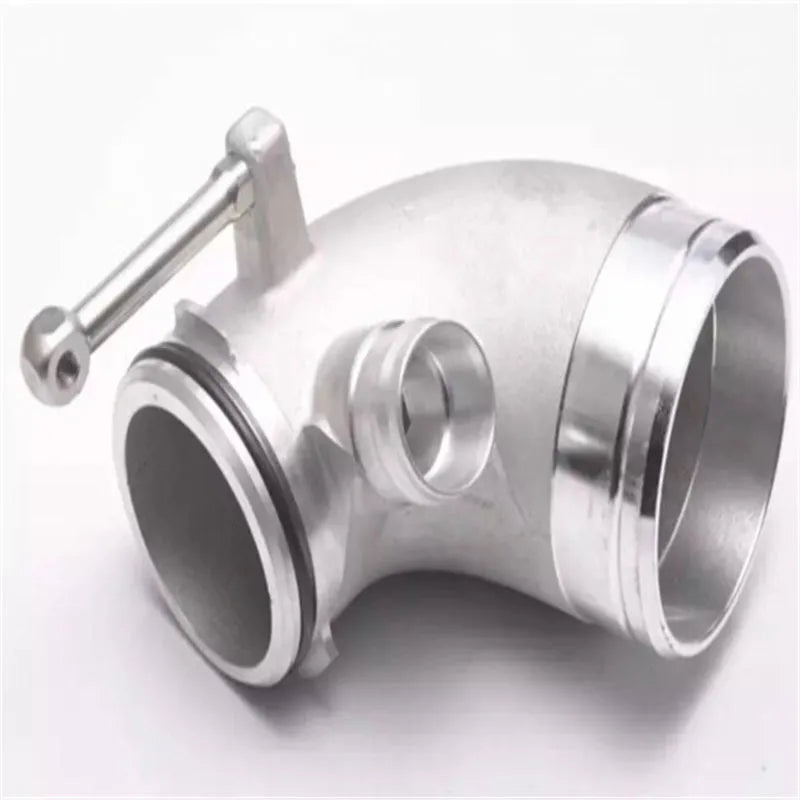

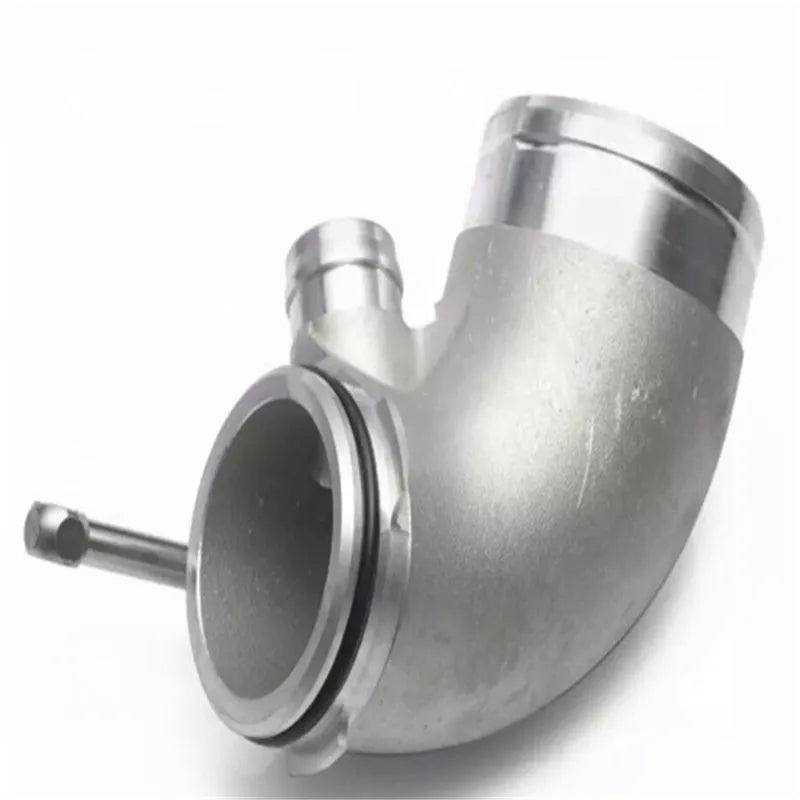

Modified Plus-Sized Aluminium Alloy Turbine Pipe 90 Degree Elbow for Lateral Engine Positioning

This automotive turbine pipe elbow addresses specific installation challenges in modified vehicle turbocharger systems, particularly where lateral engine positioning creates routing constraints. The 90-degree bend configuration provides a precise directional change for compressed air flow between components, while the plus-sized internal diameter accommodates increased air volume requirements often associated with performance upgrades. Manufactured from aluminium alloy through integrated moulding techniques, this component offers a practical solution for enthusiasts and mechanics seeking to optimise their forced induction setups without the potential reliability concerns of welded joints.

Features and Construction

This turbine pipe elbow incorporates several design elements that make it suitable for automotive turbocharger applications where space and airflow requirements are specific considerations. The construction method and material selection have been chosen to address common installation challenges while maintaining compatibility with standard automotive plumbing practices.

Material and Build

The pipe is manufactured from aluminium alloy using an integrated moulding process that creates a single-piece component without welded joints. This construction method eliminates potential weak points where welds might fail under thermal cycling or vibration stress. Aluminium alloy offers favourable thermal conductivity properties for managing heat transfer in turbocharger applications while maintaining a relatively lightweight profile compared to alternative metallic materials.

Size and Practical Fit

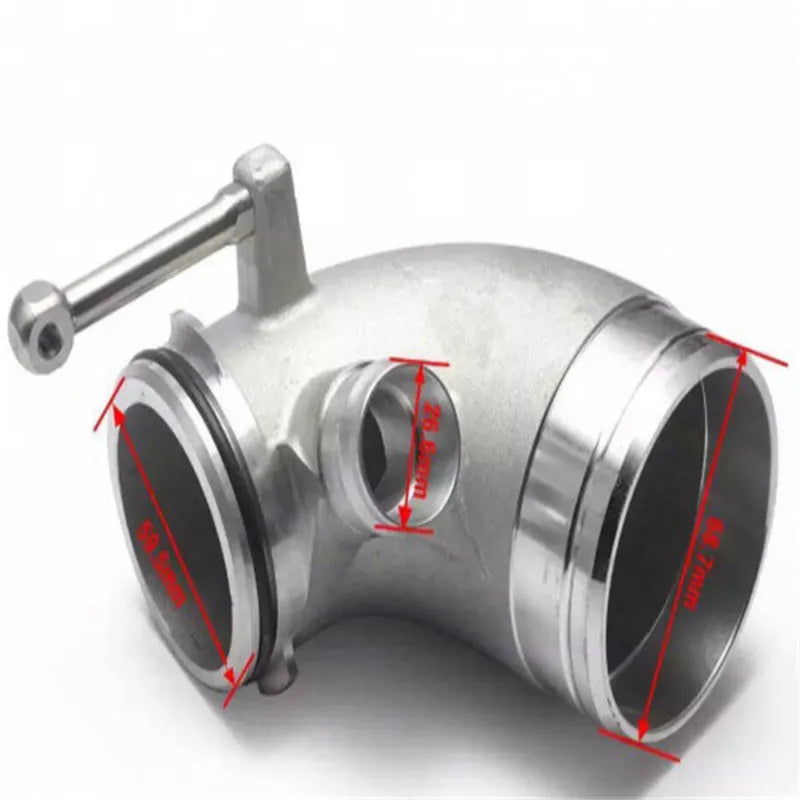

The 'plus-sized' designation indicates this component has an enlarged internal diameter compared to standard offerings, potentially supporting increased airflow volumes that might be required in performance-tuned applications. The specific 90-degree elbow configuration is particularly suited to lateral engine positioning scenarios where this angular routing optimises component placement and hose connections. The product is supplied exactly as shown in the accompanying imagery, with no alternative colour or finish options indicated.

Uses and Placement

This specialised automotive component serves specific functions within turbocharger and forced induction systems, particularly where modified engine configurations or performance upgrades create unique installation requirements. Its design addresses both practical fitting considerations and airflow management needs in these applications.

Event or Professional Use

For competitive motorsport applications or professional tuning environments, this aluminium alloy elbow provides a reliable connection point between turbocharger components and intercooler systems. The absence of welded joints reduces potential failure points during sustained high-performance operation, while the integrated moulding ensures consistent internal surface finish that promotes smooth airflow. The plus-sized internal diameter can accommodate the increased air volumes often associated with upgraded turbochargers or higher boost pressures.

Everyday Home Use

For enthusiasts undertaking performance modifications on road-going vehicles, this component offers a practical solution for addressing specific installation challenges. The 90-degree configuration helps navigate space constraints in engine bays with lateral-mounted turbos, potentially reducing the need for complex custom fabrication. The aluminium alloy construction maintains compatibility with standard automotive plumbing fittings and allows for installation using conventional tools and techniques familiar to most home mechanics.

Benefits and Buying Value

This turbine pipe elbow provides several practical advantages for automotive applications where turbocharger system integrity and performance are priorities. Its design addresses specific installation challenges while offering construction characteristics that support reliable operation in demanding environments.

Reuse and Low Maintenance

The single-piece aluminium alloy construction offers durability characteristics suitable for extended service life in automotive applications. Without welded joints that might deteriorate under thermal cycling, the component maintains its structural integrity through repeated heating and cooling cycles common in turbocharger operation. The material properties allow for cleaning and inspection using standard automotive maintenance practices, supporting ongoing usability throughout the component's service life.

Why Choose This Product

This turbine pipe elbow provides a specialised solution for specific automotive turbocharger installations where lateral engine positioning creates routing challenges. The integrated moulding process eliminates potential weak points associated with welded construction, while the aluminium alloy material offers favourable thermal management properties. For applications requiring increased airflow capacity, the plus-sized internal diameter accommodates these requirements without necessitating custom fabrication or multiple component combinations.
