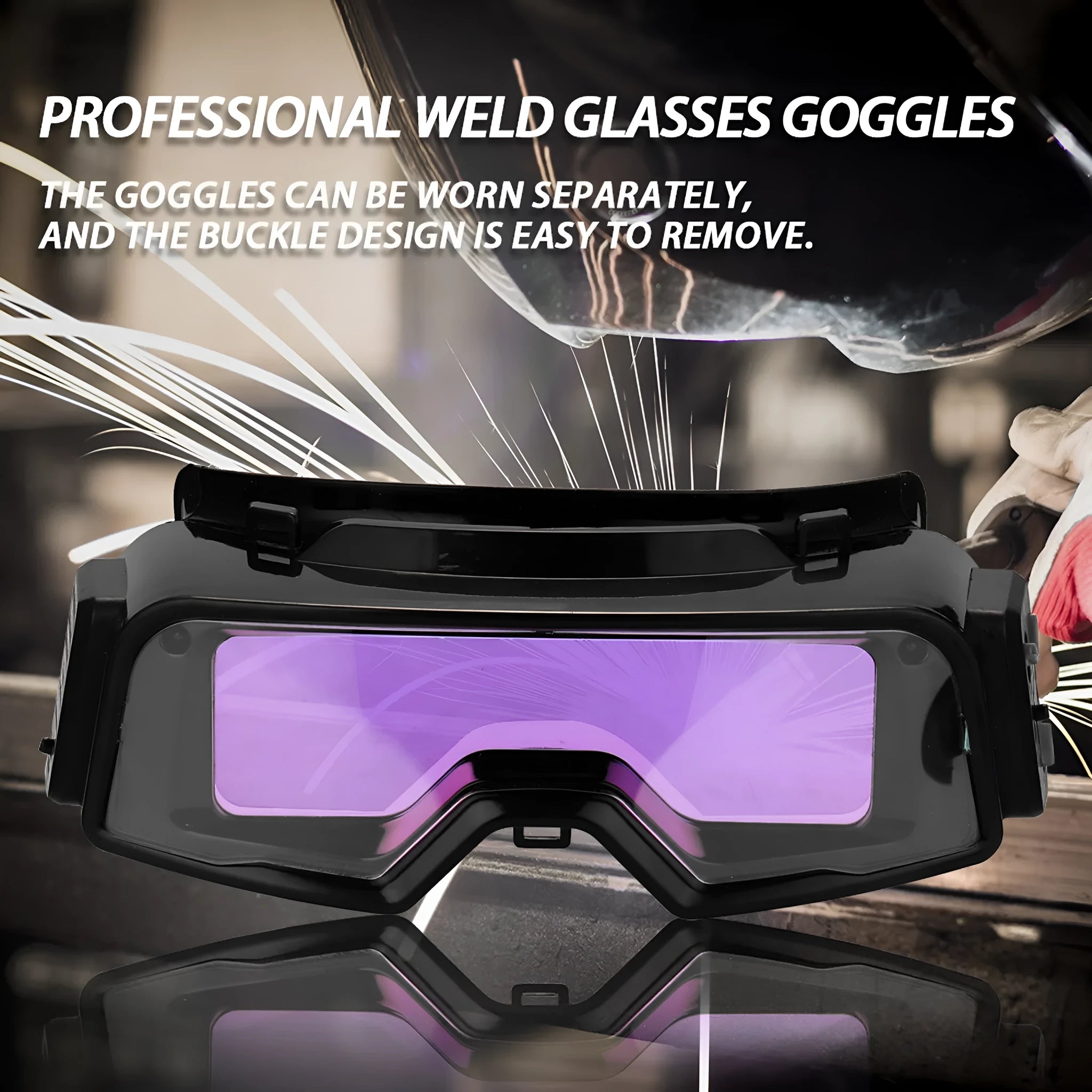

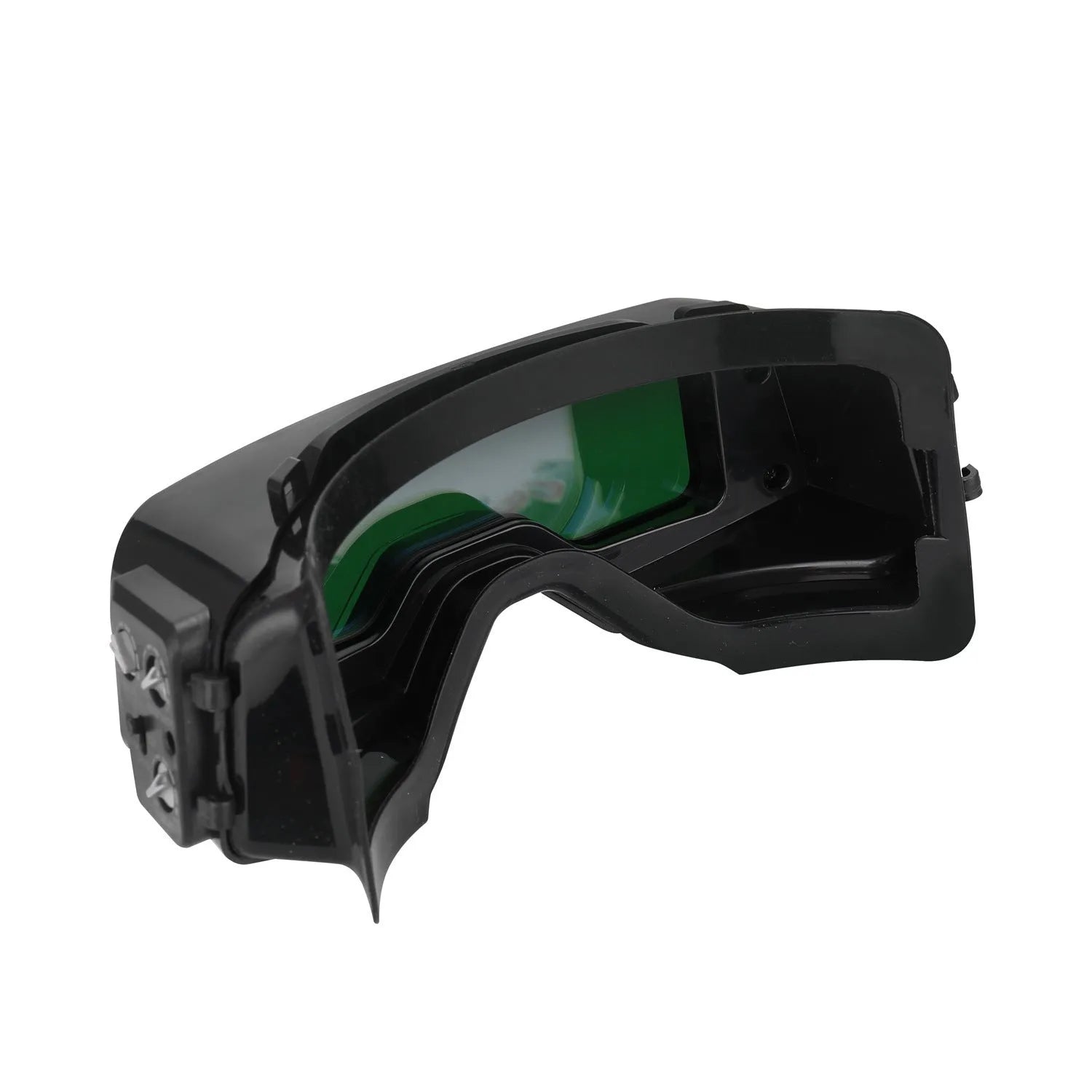

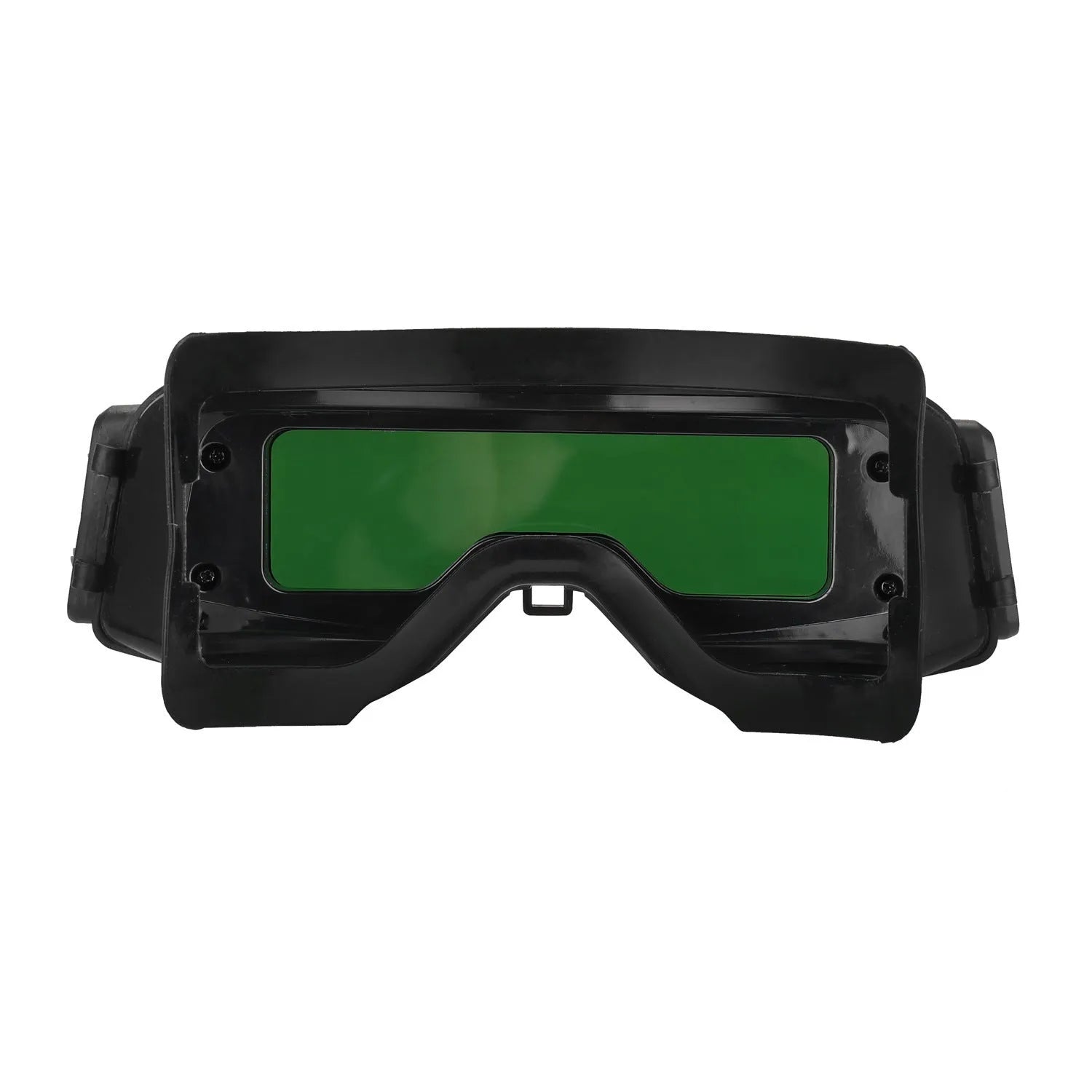

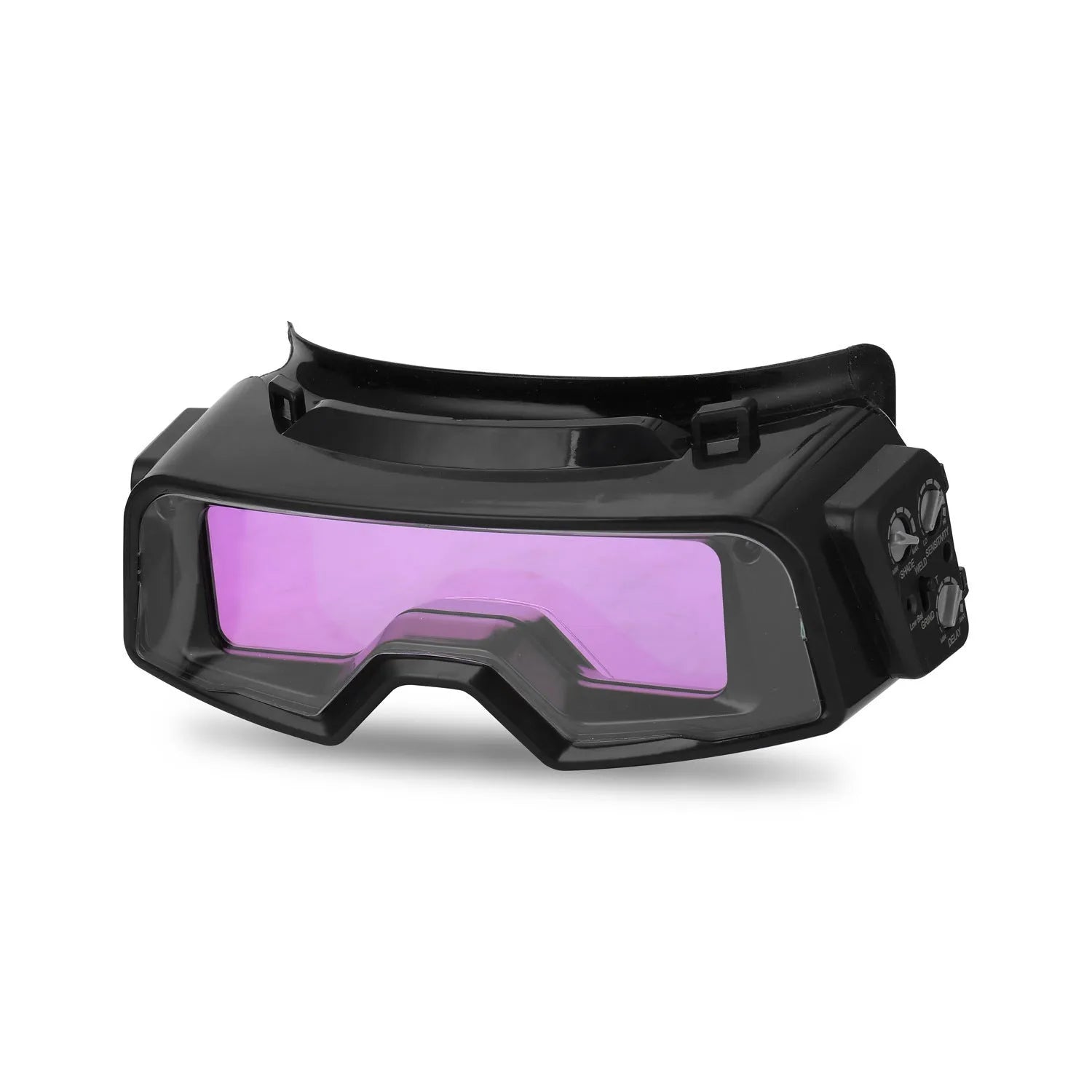

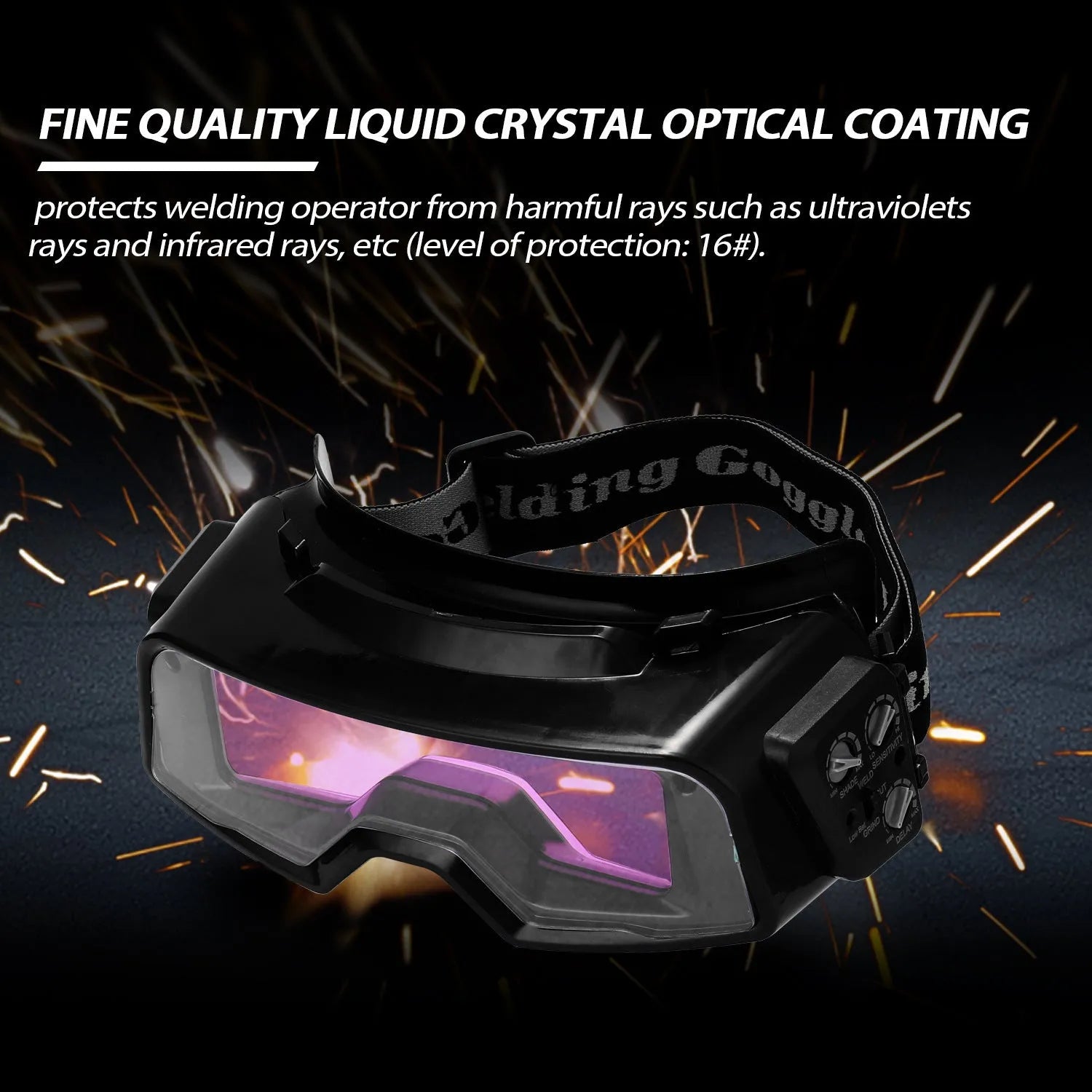

Automatic darkening welding mask with adjustable DIN5-DIN13 shade range and 122.5x35mm viewing area

This automatic darkening welding mask provides immediate eye protection during arc welding operations, transitioning from its clear DIN4 state to darkened shades between DIN5 and DIN9 or DIN9 and DIN13 range in just 3/10000 of a second. With two dedicated arc welding sensors, the mask reliably detects welding arcs while offering stepless sensitivity control for fine-tuning response to different light conditions. The adjustable delay function allows users to set darkening persistence from 0.1 to 1.0 seconds after the arc stops, making it suitable for various welding techniques including MIG, TIG, and stick welding applications. Built from PP material and weighing 195 grams, the mask maintains comfortable wear during extended use while providing DIN16-rated UV protection against harmful radiation.

Features and Construction

The welding mask combines practical safety features with user-adjustable settings to accommodate different welding scenarios and working environments.

Material and Build

Constructed from PP (polypropylene), the welding mask shell provides durable protection while keeping overall weight to 195 grams for comfortable extended wear. The material choice ensures structural integrity across the operating temperature range of -5°C to +55°C, maintaining functionality in various workshop conditions. UV protection is rated at DIN16, offering substantial defence against harmful ultraviolet radiation generated during welding processes. The included 3V CR2450 button battery with 550mAh capacity powers all electronic functions, providing reliable operation without frequent battery changes.

Size and Practical Fit

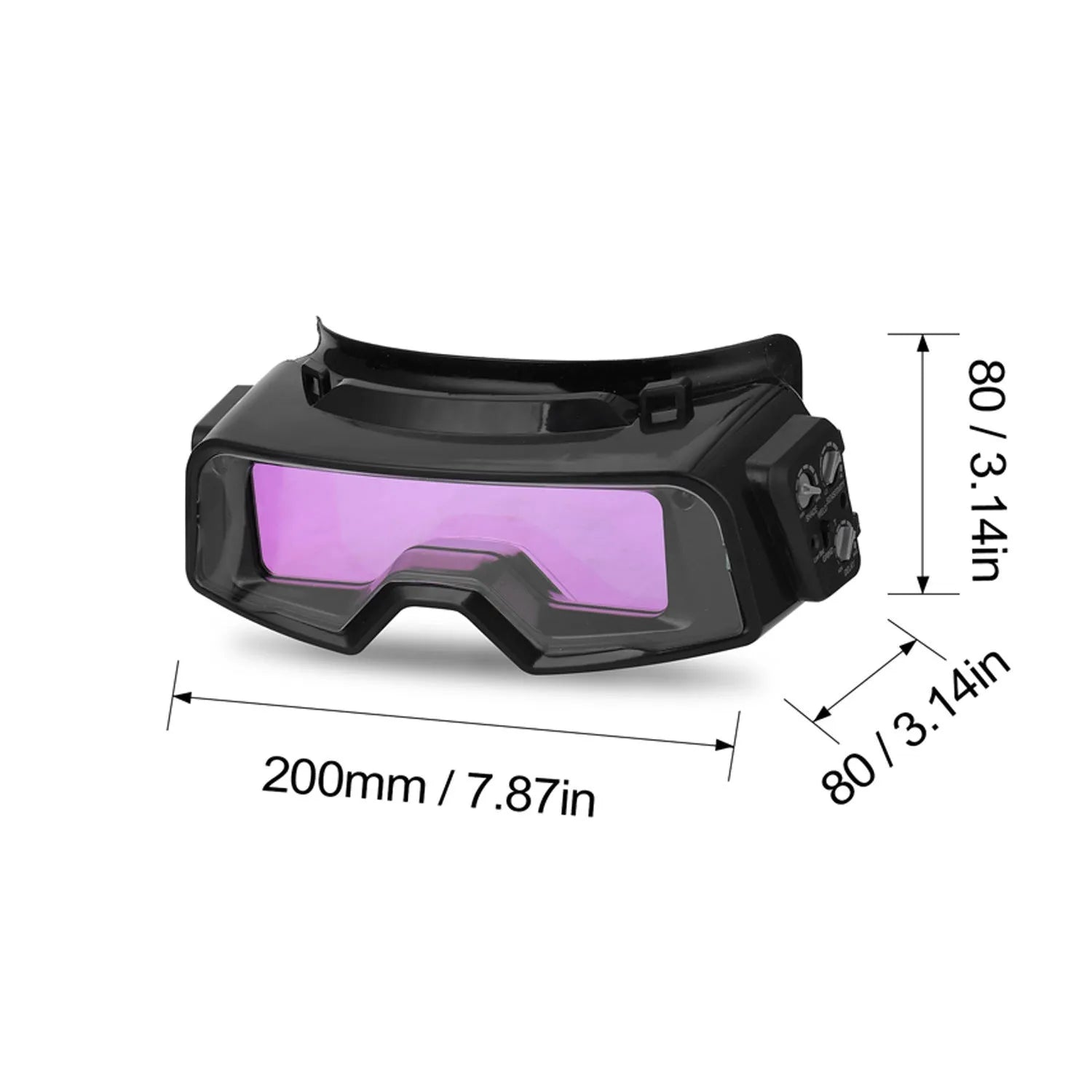

The mask features an effective viewing area measuring 122.5 by 35 millimetres, offering sufficient visibility for precise welding work while maintaining protective coverage. The complete unit arrives in packaging measuring 210 by 100 by 90 millimetres, ensuring compact storage when not in use. The 195-gram weight distribution contributes to balanced wear during prolonged welding sessions, reducing neck strain compared to heavier conventional helmets. The design accommodates standard safety glasses underneath when additional eye protection is required for specific tasks.

Uses and Placement

With its adjustable settings and reliable performance, this welding mask serves both professional welding applications and serious hobbyist workshop requirements.

Event or Professional Use

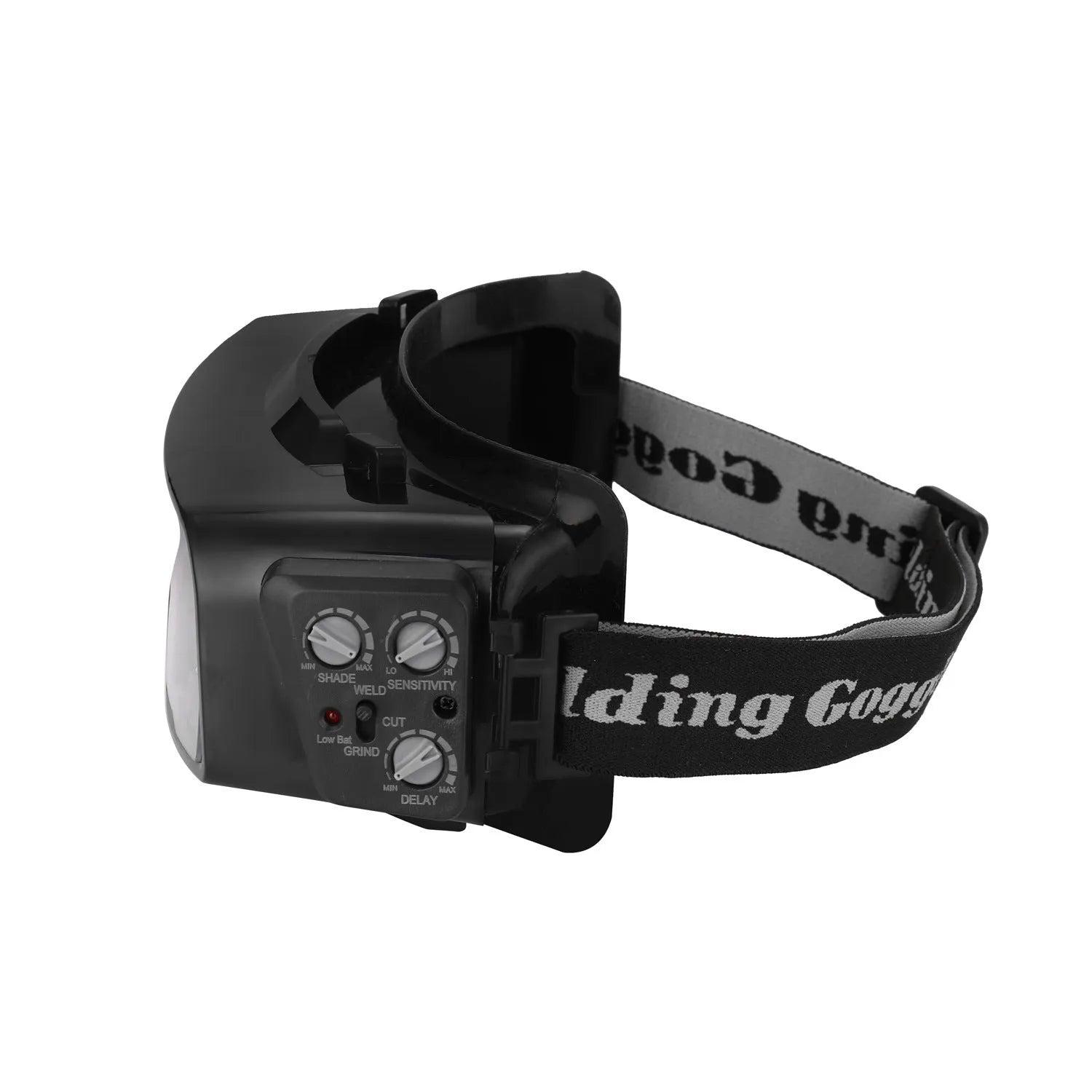

In professional welding environments, the automatic darkening function provides immediate protection against arc flash, with the 3/10000 second switching time preventing eye exposure during arc initiation. The adjustable shade range from DIN5 to DIN13 accommodates different welding currents and processes, from lighter TIG welding at lower amperages to heavier MIG and stick welding applications. The dual arc welding sensors ensure reliable detection even when welding positions obscure one sensor, maintaining protection during complex fabrication work. The stepless sensitivity control allows fine-tuning for workshop lighting conditions, preventing accidental activation from ambient light while ensuring quick response to actual welding arcs.

Everyday Home Use

For workshop enthusiasts and DIY welders, the mask offers professional-level protection without complex setup procedures. The included battery and ready-to-use configuration mean immediate deployment for repair projects and fabrication work. The adjustable delay settings from 0.1 to 1.0 seconds help conserve battery life during intermittent welding tasks common in home workshops. The outdoor mode with stepless adjustment accommodates welding in varied lighting conditions, from dimly lit garages to sunlit outdoor repair areas. The compact packaging size makes for convenient storage between projects while protecting the lens from damage.

Benefits and Buying Value

The welding mask combines practical safety engineering with user-adjustable features that adapt to different welding requirements and working styles.

Reuse and Low Maintenance

The CR2450 battery provides sufficient capacity for extended use between replacements, with the 550mAh rating supporting multiple welding sessions. The operating temperature range from -5°C to +55°C ensures reliable performance in unheated workshops during colder months and in sun-exposed work areas during summer. The PP construction resists common workshop chemicals and cleaning agents used around welding areas. The dual sensor design maintains functionality even if one sensor becomes obstructed by spatter or workshop debris, providing continued protection until cleaning can be performed.

Why Choose This Product

This welding mask offers measurable performance specifications including the 122.5x35mm viewing area, 3/10000 second switching time, and adjustable DIN5-DIN13 shade range that accommodates various welding applications. The inclusion of two arc welding sensors provides redundancy for reliable protection compared to single-sensor designs. The stepless sensitivity and delay adjustments allow fine-tuning for specific welding techniques and workshop conditions. The complete package includes both mask and battery, requiring no additional purchases before use. The DIN16 UV protection rating offers defence against harmful radiation beyond just visible light filtration.
