35mm Hinge Punch Locator: Adjustable Margin Tool for Cabinet & Wardrobe Door Installation

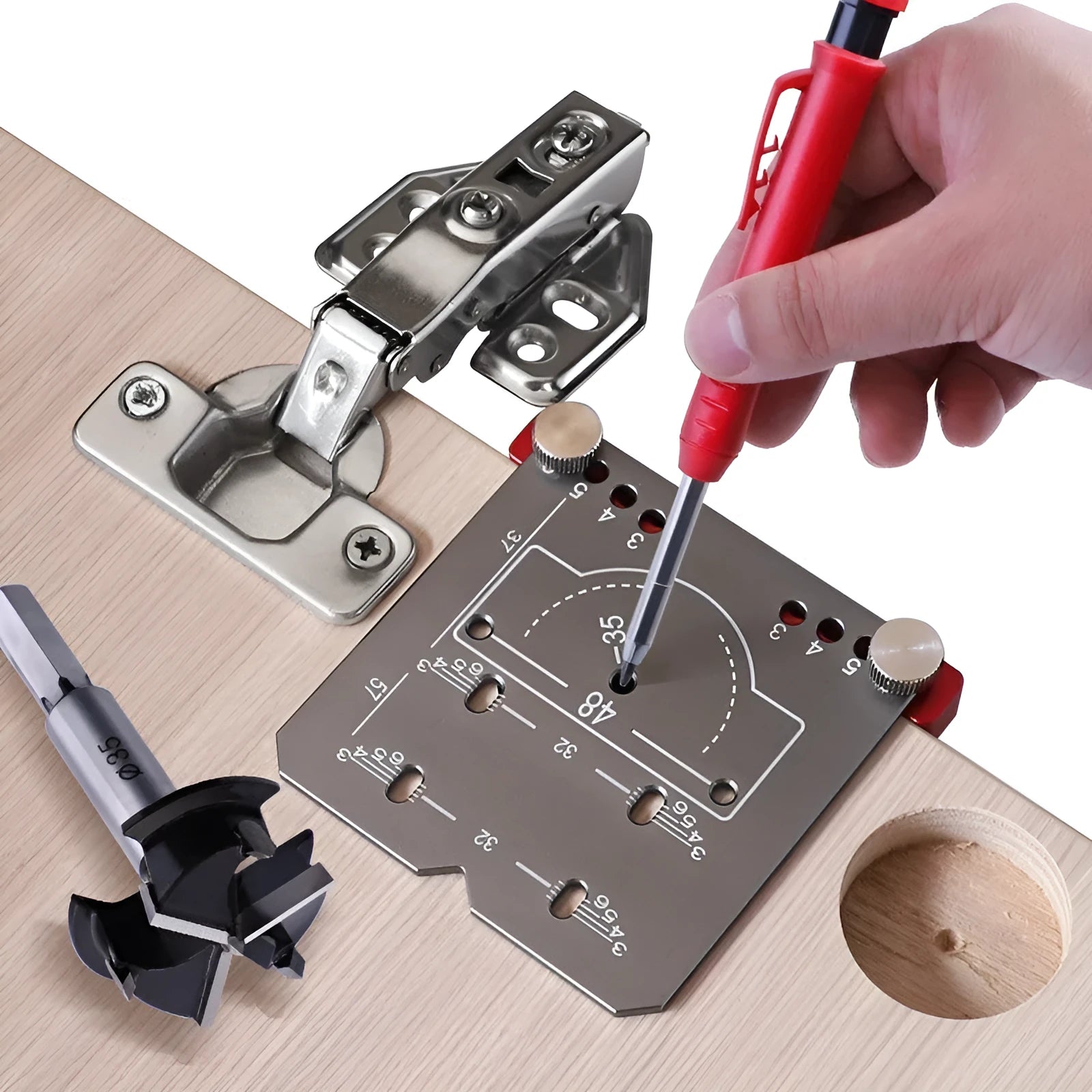

Installing hinges on cabinet doors, wardrobe doors, or other furniture pieces requires precise alignment to ensure smooth operation and a professional finish. This 35mm Hinge Punch Locator is a dedicated woodworking tool designed to eliminate the common inaccuracies of manual measurement. It provides a reliable, repeatable method for marking the exact positions for both the hinge cup recess and the mounting screw holes. Constructed from aluminium alloy and featuring a hard alloy limit tapper, this tool is built for the practical demands of home improvement projects and DIY woodworking, offering adjustable settings to suit various installation preferences and hinge types.

Features and Construction

This tool combines a layout ruler with an integrated marking punch to streamline the hinge fitting process. Its design focuses on delivering accuracy through simple, mechanical aids, removing complexity from a task that is critical for door functionality.

Material and Build

The core of the tool is its ruler body, manufactured from aluminium alloy. This material choice results in a tool that is both lightweight for easy handling and sufficiently robust for workshop use. The integrated marking component is a limit tapper with a blade made from hard alloy. This blade has undergone a high-temperature heat treatment process, a detail that contributes to its stated characteristics of high hardness, sharpness, and wear resistance, ensuring it can create clear marks through repeated use on various wood types.

Size and Practical Fit

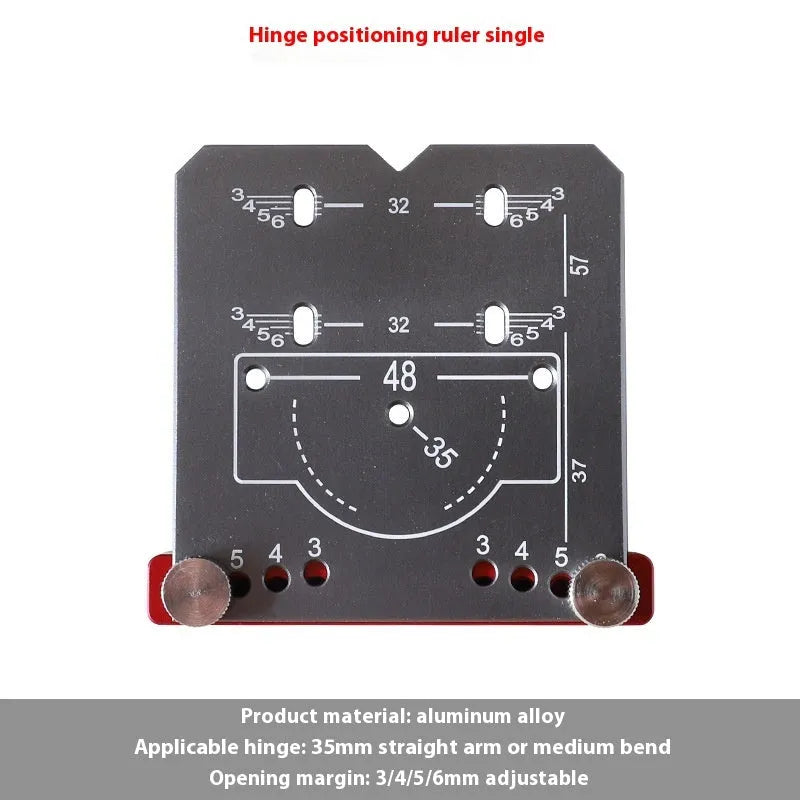

The locator is specifically engineered for use with 35mm diameter hinge cups, which are standard for many extended arm and middle bend hinges used in kitchen cabinets, wardrobes, and other furniture. Its key functional feature is the adjustable margin setting. The tool allows you to select an opening margin of 3mm, 4mm, 5mm, or 6mm, giving you control over how far the door will sit from the cabinet frame. This adjustability makes it suitable for a wide range of hinge models and personal installation preferences, enhancing its versatility for different projects.

Uses and Placement

This tool is designed for a specific, high-precision task in furniture assembly and installation. It bridges the gap between professional results and achievable DIY work, providing the guidance needed for consistent outcomes.

Event or Professional Use

For tradespeople such as kitchen fitters, carpenters, or furniture installers, speed and consistency are vital. This hinge locator allows for rapid, accurate marking on multiple doors during a single job, ensuring every hinge is positioned identically. This leads to uniform door gaps and reliable operation across all units in a kitchen or fitted wardrobe installation, meeting professional standards and client expectations efficiently.

Everyday Home Use

For the home DIY enthusiast tackling projects like building a wardrobe, installing kitchen cabinets, or repairing furniture, this tool demystifies a tricky step. It provides clear, physical guidance, preventing the common errors of misaligned hinges that cause doors to bind or not close flush. By using the adjustable margin ruler and the sharp tapper, even those with limited woodworking experience can achieve a neat, functional result, increasing confidence and the quality of home improvement work.

Benefits and Buying Value

The value of this tool lies in its ability to transform a frustrating, error-prone task into a simple, repeatable process. It focuses on delivering tangible, practical benefits derived from its specific design features.

Reuse and Low Maintenance

As a primarily metal tool with a wear-resistant hard alloy blade, this hinge locator is built for reuse across multiple projects. Unlike disposable templates or paper guides, it is a durable piece of workshop equipment. Maintenance is minimal; simply ensure it is stored in a dry place to prevent corrosion and keep the marking blade clean of wood debris to maintain its marking clarity.

Why Choose This Product

This hinge punch locator stands out for its direct and effective approach to a common woodworking challenge. Its combination of an aluminium alloy frame and a heat-treated hard alloy blade speaks to a construction focused on longevity. The adjustable margin feature (3-6mm) provides useful flexibility not always found in simpler jigs. By delivering precise positioning for both the hinge cup and the screw holes in one tool, it addresses the complete marking requirement, making it a comprehensive and practical choice for anyone regularly working with 35mm cabinet hinges.
