12V DC One-in-Four Monitoring Power Cord: 0.39m Black Cable with 80W Transmission for CCTV Systems

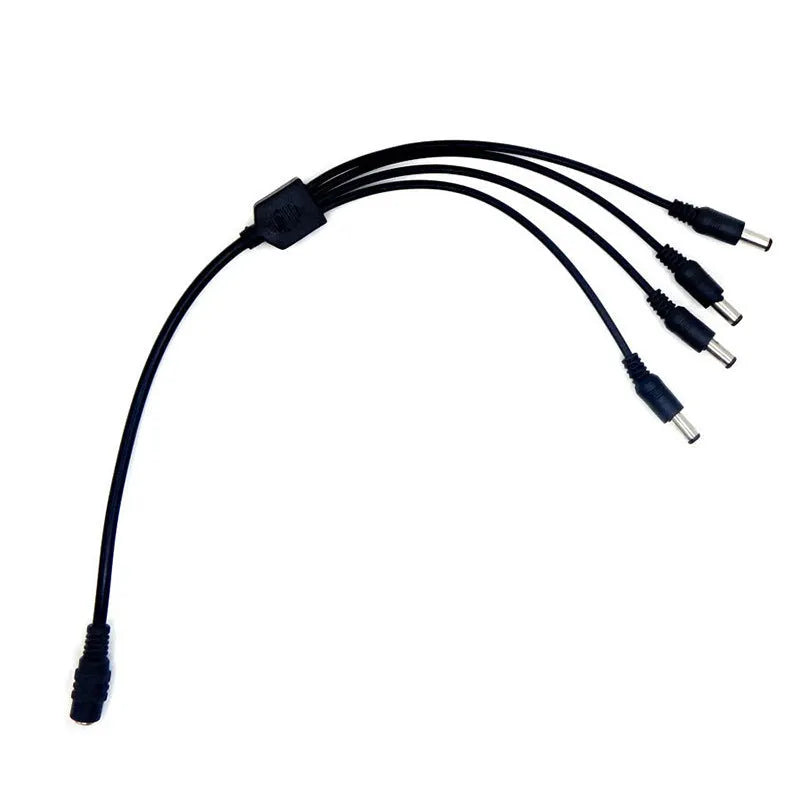

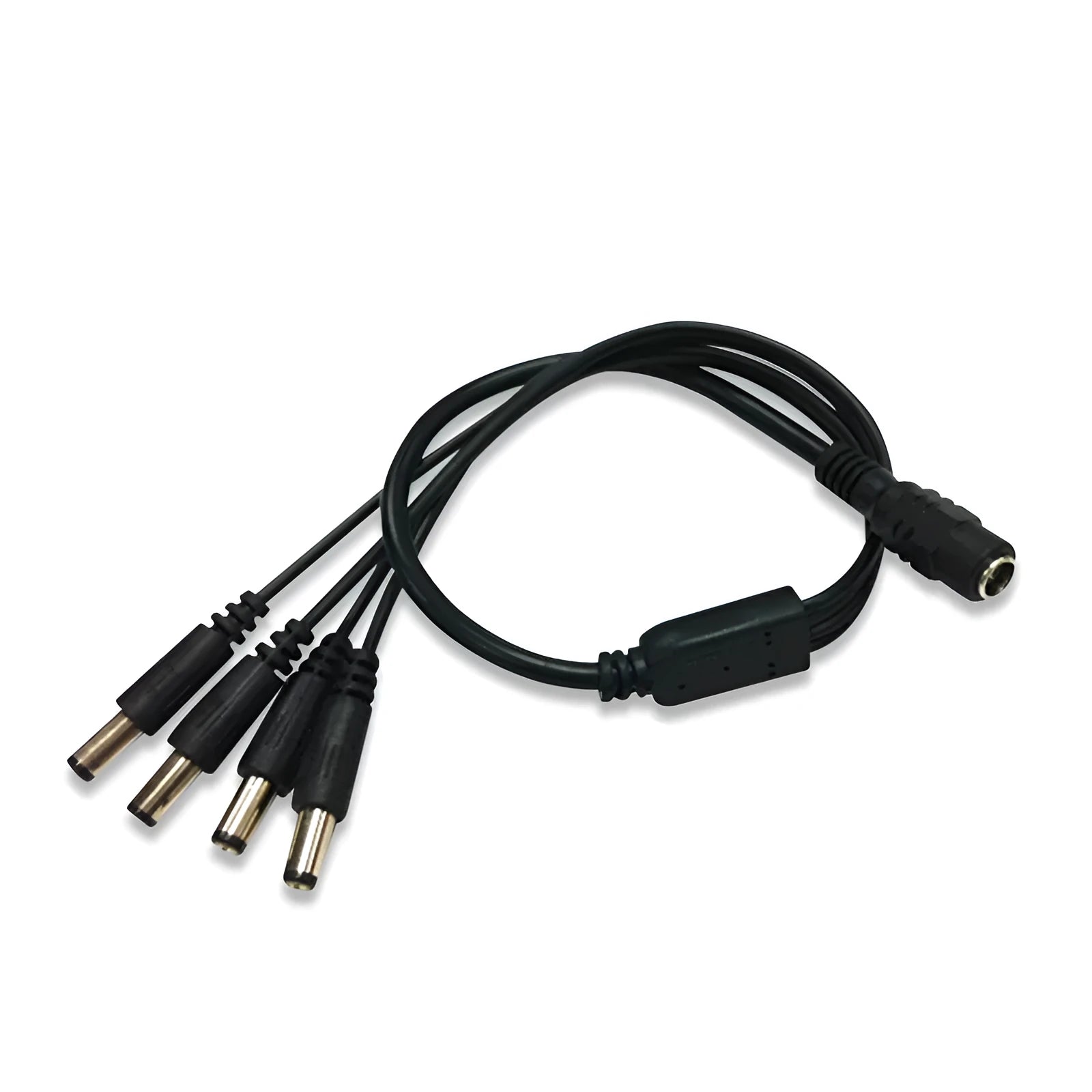

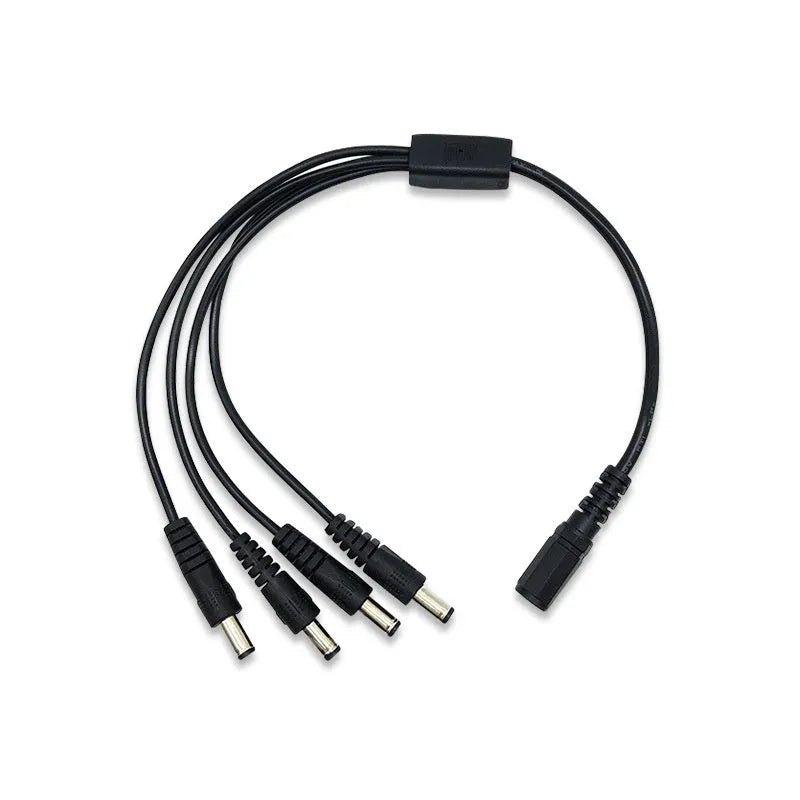

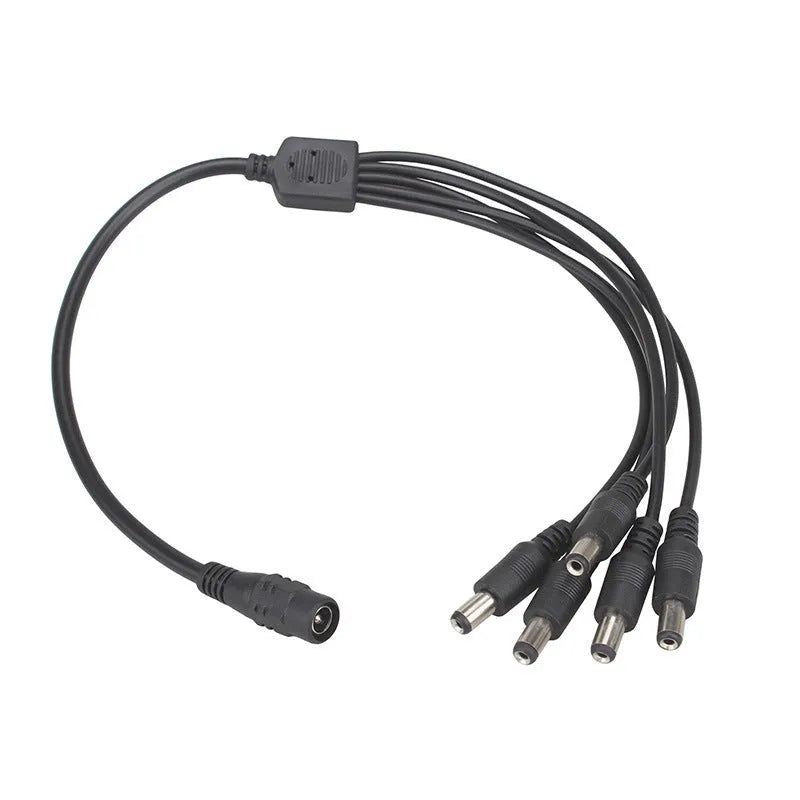

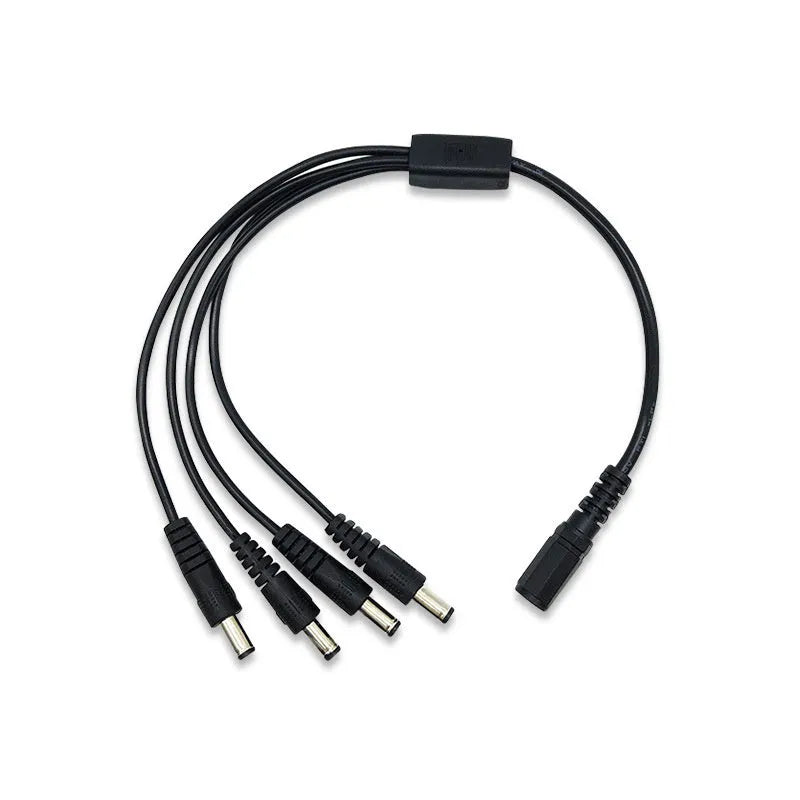

This monitoring power cord provides a practical solution for security camera installations requiring multiple devices to be powered from a single 12V DC source. Designed specifically for surveillance applications, the DC one-in-four configuration allows you to connect up to four cameras or monitoring devices while maintaining reliable power transmission. With a maximum capacity of 20A current and 80W power across the 1V~38V voltage range, this cable supports professional and domestic CCTV systems. The 0.39 metre length offers flexibility in positioning power supplies relative to cameras, while the Class A export factory quality ensures consistent performance for security monitoring requirements.

Features and Construction

The power cord's design centres on efficient power distribution for monitoring equipment. Its construction balances transmission capacity with physical durability for security installations.

Material and Build

Built with copper core wire conductors known for reliable electrical conductivity, this monitoring power cord maintains signal integrity for CCTV camera operation. The sheath material is specified as "other," indicating it meets monitoring application requirements though the exact compound is determined during custom processing. Factory quality is certified as Class A export standard, indicating production consistency suitable for professional installations. Temperature resistance is optimised for monitoring environments where cables may experience varied thermal conditions during operation.

Size and Practical Fit

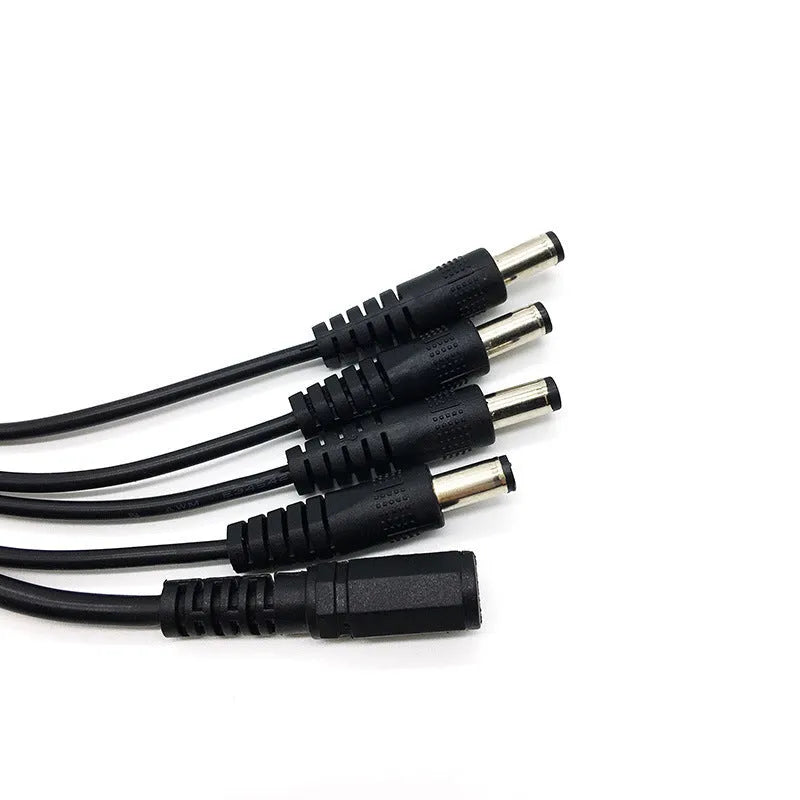

With a 0.39 metre total length, this power cord provides sufficient reach for installations where power supplies need positioning near camera clusters. The 5.5mm connector system ensures compatibility with common CCTV equipment interfaces, while the input connector's dual-size accommodation (2.1/2.5mm) offers flexibility with different plug types. Wire specifications including core count, nominal section, and maximum outer diameter are to be determined based on custom requirements, allowing tailoring to specific installation needs. This custom processing approach means you can specify exact requirements for sheath thickness, insulation material, and resistance characteristics.

Uses and Placement

This monitoring power cord serves both professional security installations and smaller-scale surveillance setups. Its power distribution capabilities address common challenges in camera system deployment.

Event or Professional Use

For commercial security systems, this DC splitter cable allows installers to power multiple cameras from centralised 12V power supplies, reducing wiring complexity and potential failure points. The 80W maximum transmission capacity supports high-resolution CCTV cameras and infrared illumination systems that demand substantial power. Event security teams can deploy temporary monitoring setups with cleaner cable management using the one-in-four distribution approach. Professional installers benefit from the custom processing options, enabling specification of exact wire characteristics for large-scale projects with standardised requirements.

Everyday Home Use

Home security systems with multiple exterior and interior cameras gain installation flexibility from this power distribution solution. The compact 0.39 metre length works well for discreet routing along walls or through conduits while keeping power supplies out of sight. Homeowners installing DIY CCTV can connect four cameras to a single adaptor, reducing clutter and minimising wall socket requirements. The standard 5.5mm connectors match common consumer security camera power inputs, ensuring compatibility with popular home monitoring brands. Simple inner positive/outer negative polarity configuration prevents connection errors that could damage equipment.

Benefits and Buying Value

The monitoring power cord offers practical advantages through its specialised design and construction approach. Its value emerges from solving specific power distribution challenges in surveillance installations.

Reuse and Low Maintenance

Constructed to Class A export standards, this power cord maintains performance across installation cycles, allowing relocation of cameras without replacing power cables. The copper core construction provides consistent conductivity over time, reducing voltage drop issues that can affect camera performance. With proper installation following the polarity specifications, the cable requires minimal maintenance beyond occasional inspection of connections. The "other" sheath material, though unspecified, is selected for monitoring applications where cables may face environmental exposure in some installations.

Why Choose This Product

This monitoring power cord addresses the specific need for efficient 12V DC power distribution across multiple CCTV cameras. Unlike generic splitter cables, it's engineered for surveillance applications with appropriate temperature resistance and transmission specifications. The 80W maximum power capacity ensures support for power-hungry cameras with infrared LEDs or motorised features. Custom processing options allow specification of exact wire characteristics for projects with particular requirements. The combination of measurable specifications (0.39m length, 5.5mm connectors, 20A/80W capacity) with application-focused design makes this cable a practical choice for security system installations.
